Woofer Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Scuff plate (passenger's side) (See SCUFF PLATE REMOVAL/INSTALLATION .)
2. Front side trim (passenger's side) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. A-pillar trim (passenger's side) (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
5. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
6. Shift lever knob (MT)
7. Shift panel compartment (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
9. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
10. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
11. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
12. Front console compartment (See FRONT CONSOLE REMOVAL/INSTALLATION .)
13. Front cup holder bracket (See FRONT CUP HOLDER BRACKET REMOVAL/INSTALLATION .)
14. Foot support (See FOOT SUPPORT REMOVAL/INSTALLATION .)
Disconnect the connector.

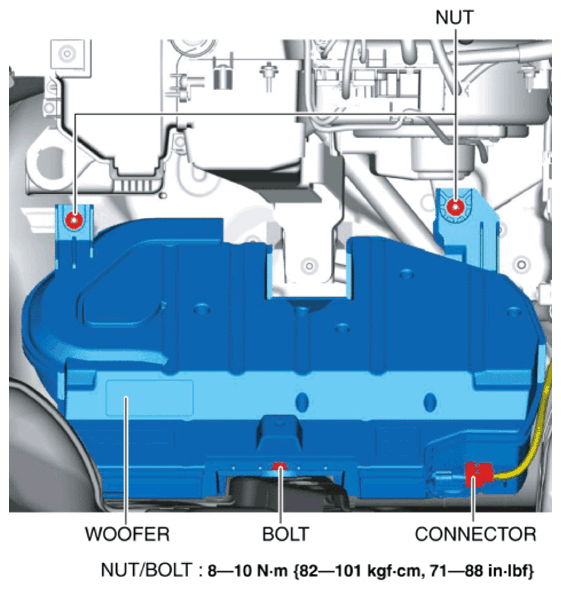

Fig 1: Removing Woofer Bolt And Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the nuts.
Remove the bolt.
Remove the woofer.
Install in the reverse order of removal.
