Foot Support Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Passenger-side scuff plate (See SCUFF PLATE REMOVAL/INSTALLATION .)
2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
3. Passenger-side A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
4. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
5. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION .)
6. Shift lever knob (MT)
7. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
9. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
10. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
11. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
12. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION .)
13. Front cup holder bracket (See FRONT CUP HOLDER BRACKET REMOVAL/INSTALLATION .)
Partially peel back the floor covering No. 1.

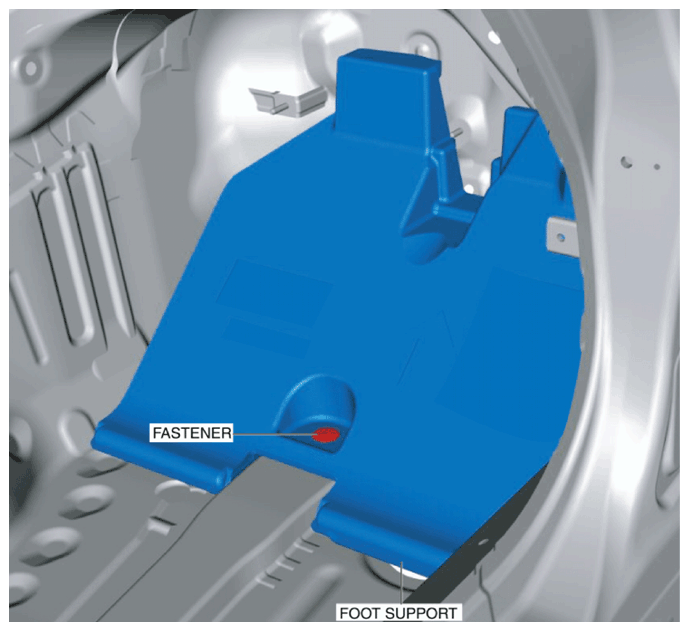

Remove the fastener.

Fig 1: Removing Foot Support Fastener
Courtesy of MAZDA MOTORS CORP.

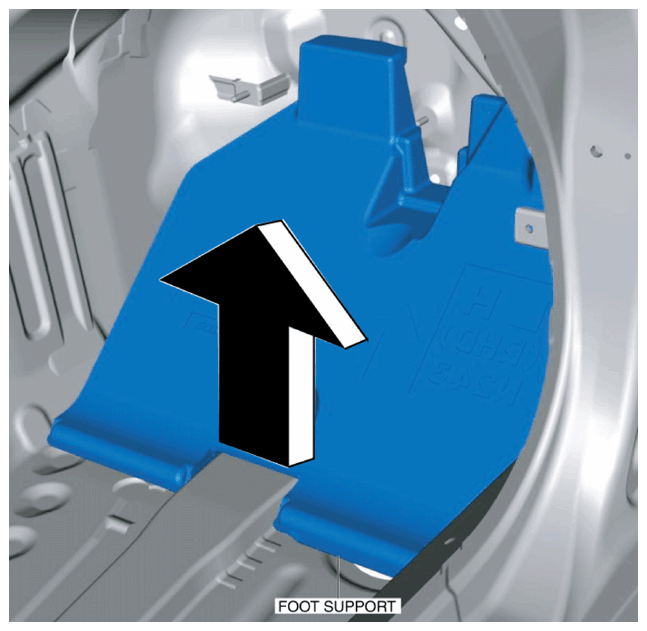

Remove the foot support in the direction of arrow shown in the figure.

Fig 2: Removing Foot Support
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
