Steering Location Index

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

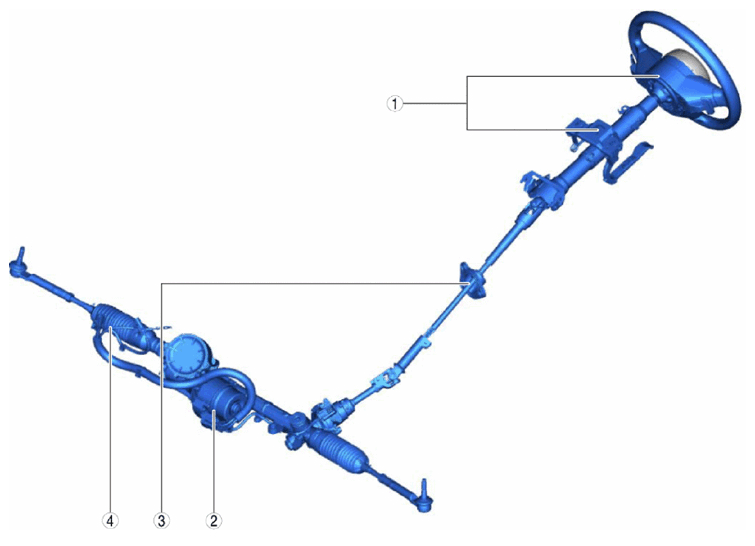

Fig 1: Steering Components Location

G10953024

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Steering wheel and column (See STEERING WHEEL AND COLUMN INSPECTION .) (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .) (See STEERING WHEEL SIDE COVER REMOVAL/INSTALLATION .) (See STEERING WHEEL BEZEL REMOVAL/INSTALLATION .) (See STEERING WHEEL COVER REMOVAL/INSTALLATION .) (See STEERING SHAFT INSPECTION .)
2	EPS CM (See ELECTRIC POWER STEERING (EPS) CONTROL MODULE REMOVAL/INSTALLATION .) (See ELECTRIC POWER STEERING (EPS) SHORT CORD REMOVAL/INSTALLATION .) (See EPS CONTROL MODULE INSPECTION .)
3	Intermediate shaft (See INTERMEDIATE SHAFT REMOVAL/INSTALLATION .)
4	Steering gear and linkage (See TIE-ROD END REPLACEMENT .) (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .) (See STEERING GEAR AND LINKAGE INSPECTION .) (See STEERING GEAR AND LINKAGE DISASSEMBLY .) (See TIE-ROD END INSPECTION .) (See TIE-ROD INSPECTION .) (See STEERING GEAR AND LINKAGE ASSEMBLY .)
