Tie-Rod End Replacement

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the snap pin from the tie-rod end.

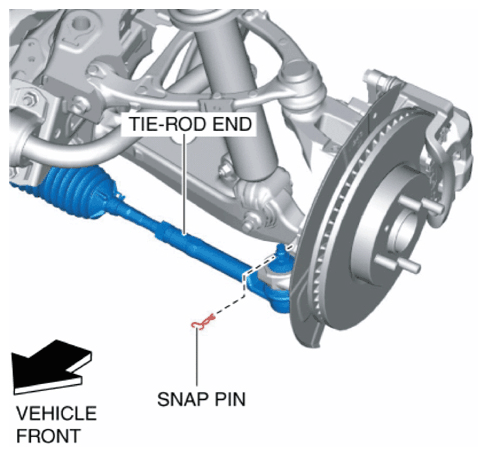

    Fig 1: Removing Snap Pin From Tie-Rod End
    G10953063Courtesy of MAZDA MOTORS CORP.
  2. Loosen the tie-rod end nut.

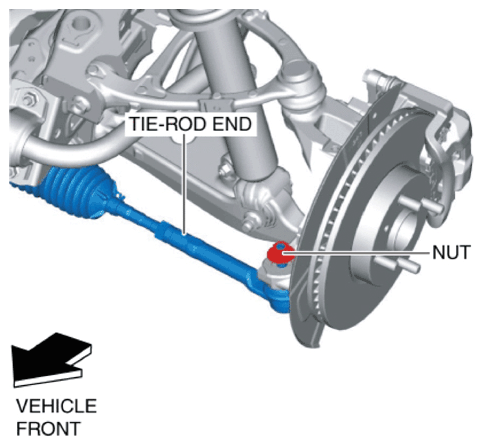

    Fig 2: Loosening Tie-Rod End Nut
    G10953064Courtesy of MAZDA MOTORS CORP.
  3. Using the SST  , disconnect the steering knuckle and tie-rod end.

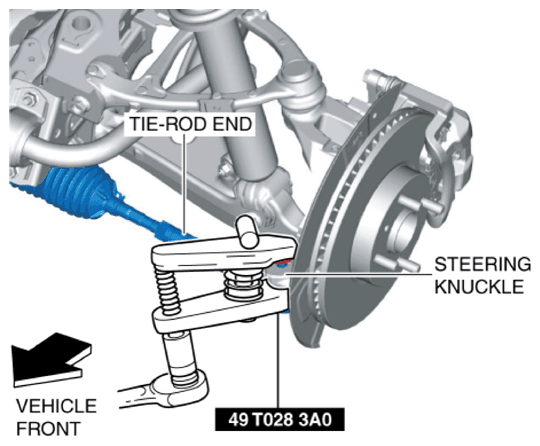

    Fig 3: Disconnecting Steering Knuckle And Tie-Rod End
    G10953065Courtesy of MAZDA MOTORS CORP.
  4. Remove the nut from the tie-rod end.

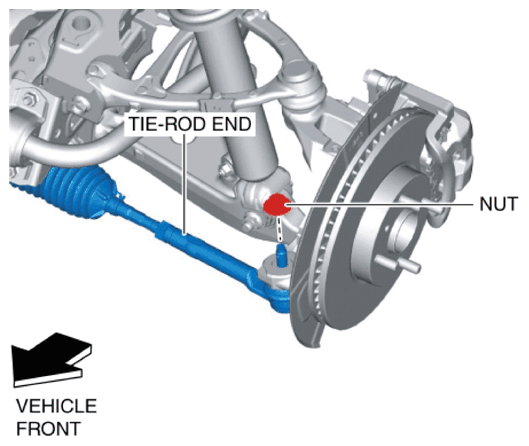

    Fig 4: Removing Nut From Tie-Rod End
    G10953066Courtesy of MAZDA MOTORS CORP.
  5. Place alignment marks as shown in the figure for proper installation.

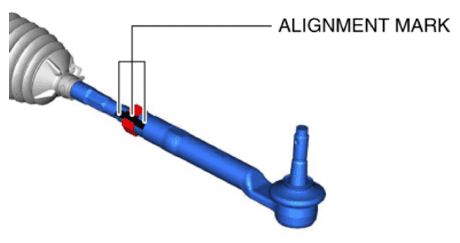

    Fig 5: Identifying Tie-Rod End Alignment Marks
    G10953067Courtesy of MAZDA MOTORS CORP.
  6. Remove the tie-rod end.

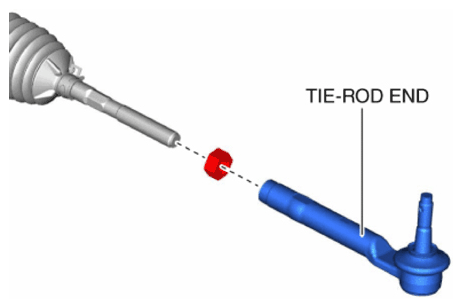

    Fig 6: Removing Tie-Rod End
    G10953068Courtesy of MAZDA MOTORS CORP.
  7. Place alignment marks on the new tie-rod end in the same positions as the removed tie-rod end.

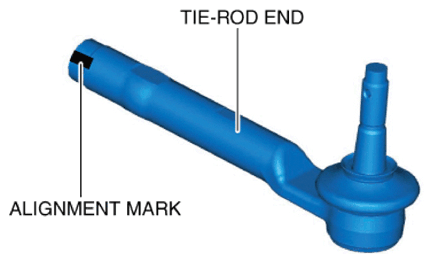

    Fig 7: Placing Alignment Marks On Tie-Rod End
    G10953069Courtesy of MAZDA MOTORS CORP.
  8. Align the marks that were made before removing the tie-rod end, and assemble the tie-rod end to the tie rod.

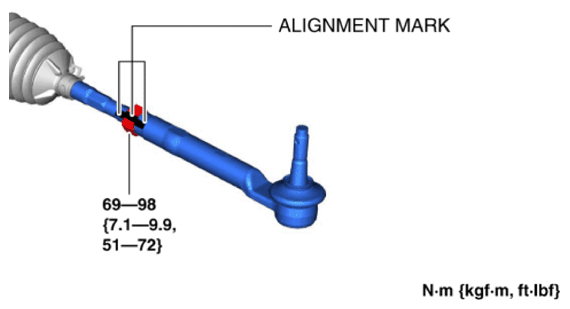

    Fig 8: Assembling Tie-Rod End To Tie Rod
    G10953070Courtesy of MAZDA MOTORS CORP.
  9. Verify that dimension A shown in the figure is within the specification.

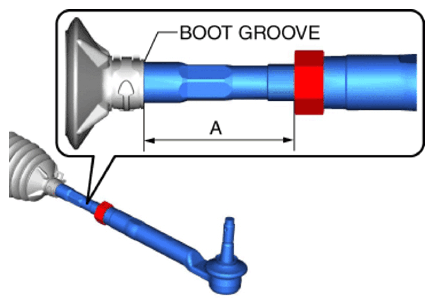

    Fig 9: Identifying Tie-Rod End And Boot Groove Dimension
    G10953071Courtesy of MAZDA MOTORS CORP.

    Specification

    • 49.8-63.8 mm {1.97-2.51 in} (difference between left and right: 3 mm {0.1 in} or less)
    • If not within the specification, make adjustments so that dimension A is within the specification.
  10. Install the tie-rod end to the steering knuckle.

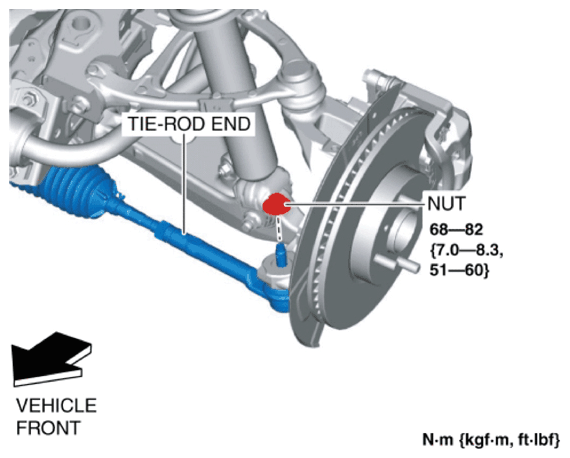

    Fig 10: Installing Tie-Rod End To Steering Knuckle
    G10953072Courtesy of MAZDA MOTORS CORP.
  11. Install the snap pin to the tie-rod end.

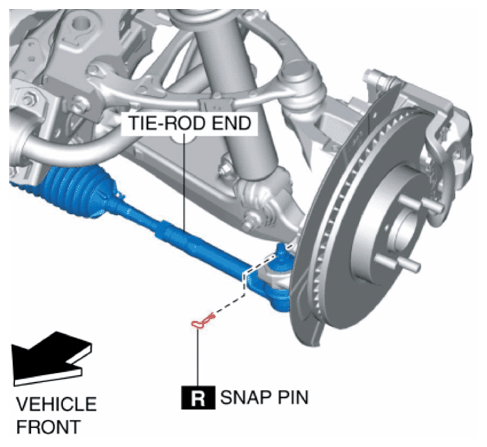

    Fig 11: Installing Snap Pin To Tie-Rod End
    G10953073Courtesy of MAZDA MOTORS CORP.
  12. After installation, inspect the front wheel alignment and adjust it if necessary. (See FRONT WHEEL ALIGNMENT .)
