Washer Motor Inspection

WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Turn the steering wheel to full right lock.
Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Lift up the vehicle.
Remove the front mudguard No. 2. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
Disconnect the connector.

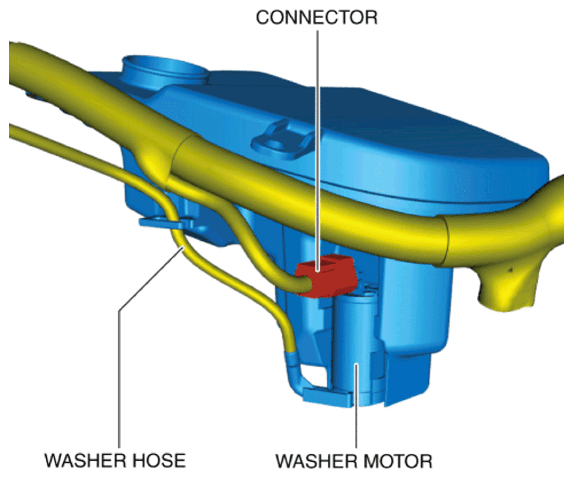

Fig 1: Disconnecting Washer Hose From Washer Motor
Courtesy of MAZDA MOTORS CORP.
Disconnect the washer hose from the washer motor.
Apply battery voltage to washer motor terminal B, and connect terminal A to ground.
WARNING:
- Water sprayed on the battery and ground could cause electrocution. When performing the washer motor inspection, prepare a container to collect washer fluid and be careful not to spray washer fluid.

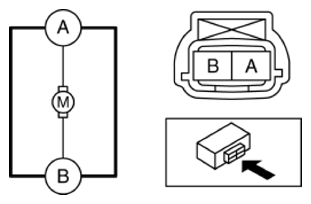

Fig 2: Applying Battery Voltage To Washer Motor Terminal B
Courtesy of MAZDA MOTORS CORP.
Verify that washer fluid sprays from the washer motor.

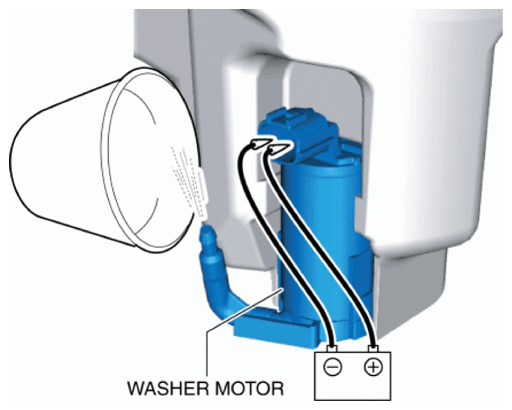

Fig 3: Spraying Washer Fluid From Washer Motor
Courtesy of MAZDA MOTORS CORP.
- If washer fluid does not spray from the washer motor, replace the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION .)
