Washer Motor Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
- Remove the washer tank. (See WASHER TANK REMOVAL/INSTALLATION .)

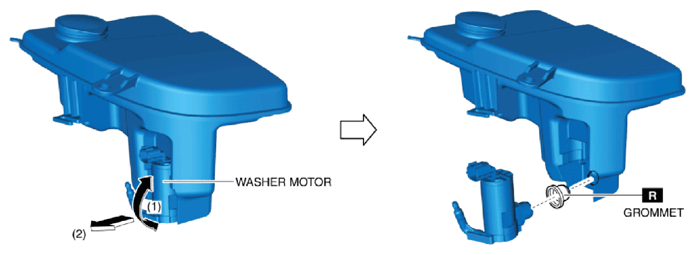

- While moving the washer motor in the direction of arrow (1) shown in the figure, remove it in the direction of arrow (2).
- Remove the grommet.
- Install in the reverse order of removal.
