Front Console Panel Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Remove the following parts:
    1. Selector lever knob (AT) (See AUTOMATIC TRANSMISSION SHIFT MECHANISM REMOVAL/INSTALLATION ).
    2. Shift lever knob (MT)
    3. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION ).
    4. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION ).
    5. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION ).
    6. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION ).
  3. Move the front console panel in the direction of the arrow shown in the figure and detach the clips and hooks from the dashboard.

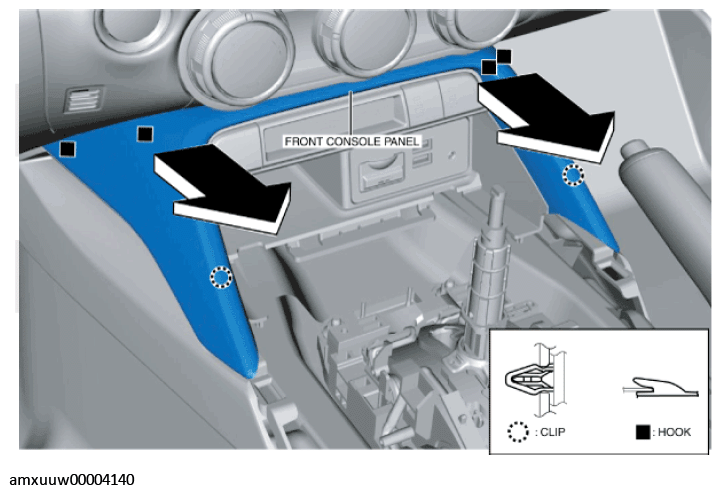

    Fig 1: Removing Front Console Panel
    G11275272Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
