Condenser Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION ).
  2. Remove the wind blocker. (See WIND BLOCKER REMOVAL/INSTALLATION ).
  3. Partially peel back the side shelf (LH) and rear package trim to a position where the condenser is visible. (See SIDE SHELF REMOVAL/INSTALLATION ). (See REAR PACKAGE TRIM REMOVAL/INSTALLATION ).
  4. Disconnect the connector.

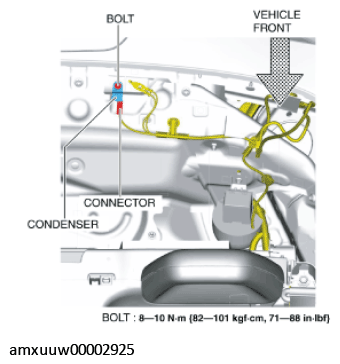

    Fig 1: Identifying Condenser, Connector And Bolt With Torque Specifications
    G11274710Courtesy of MAZDA MOTORS CORP.
  5. Remove the bolt.
  6. Remove the condenser.
  7. Install in the reverse order of removal.
