Intake-Air System Location Index

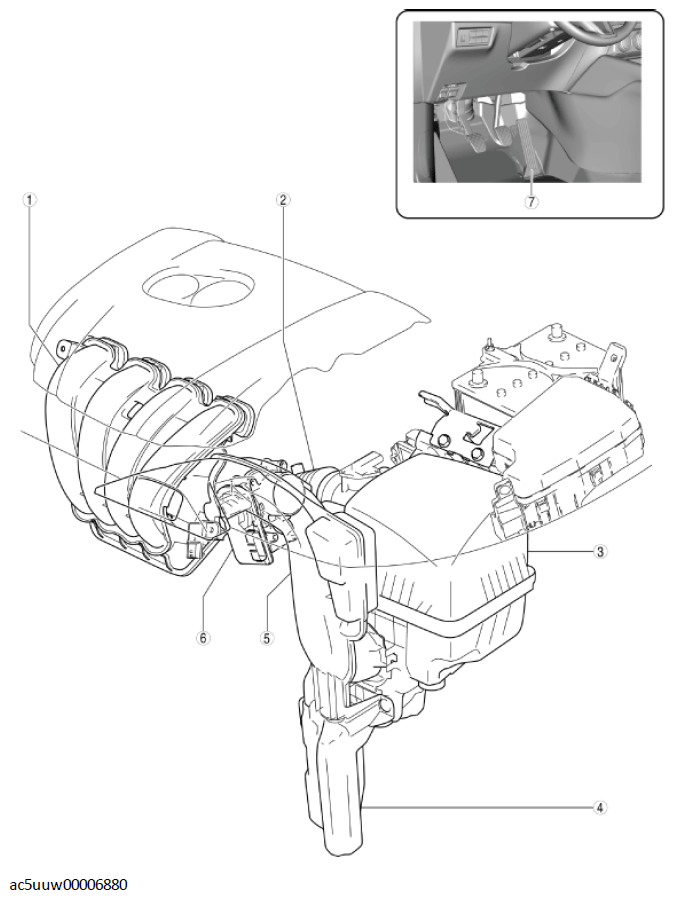

Fig 1: Intake-Air System Components Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Intake manifold (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See INTAKE MANIFOLD VACUUM INSPECTION .)
2	Air hose (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
3	Air cleaner (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION .) (See AIR CLEANER ELEMENT INSPECTION .)
4	Resonance chamber (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
5	Fresh-air duct (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
6	Throttle body (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .) (See THROTTLE BODY INSPECTION .)
7	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION .)
