Air Cleaner Element Removal/Installation

  1. Remove the air cleaner element as shown in the figure.

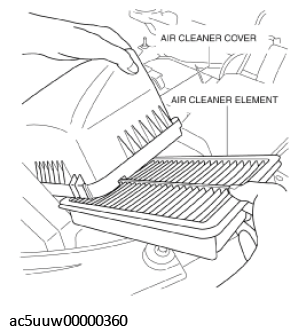

    Fig 1: Removing Air Cleaner Element
    G11429612Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
