Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If the constant velocity joint is bent during propeller shaft removal/installation or transportation after servicing, the constant velocity joint boot may contact the metallic cover and the boot may be damaged. Insert a rag between the boot and the metallic cover before servicing to protect the boot

Fig 1: Inserting Rag Between Boot And Metallic Cover

Courtesy of MAZDA MOTORS CORP.

Remove the insulator. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the tunnel member. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Remove the plate. (See Plate Installation Note .)

Fig 2: Plate And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the TWC from the mount rubber.

Fig 3: TWC Mount Rubber
Courtesy of MAZDA MOTORS CORP.
Disconnect the TWC from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0] .)
Suspend the TWC using a cable as shown in the figure.

Fig 4: Suspending TWC Using Cable
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the figure.
Install in the reverse order of removal.

Perform a road test and verify that there is no abnormal vibration or noise.

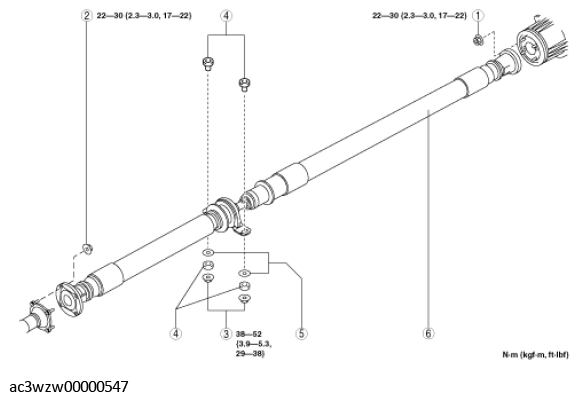

Fig 5: Propeller Shaft Related Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Nut (rear)
2	Nut (front)
3	Nut (center bearing support)
4	Bush, spacer
5	Washer
6	Propeller shaft (See Propeller Shaft Removal Note .) (See Propeller Shaft Installation Note .)
