Seats Location Index

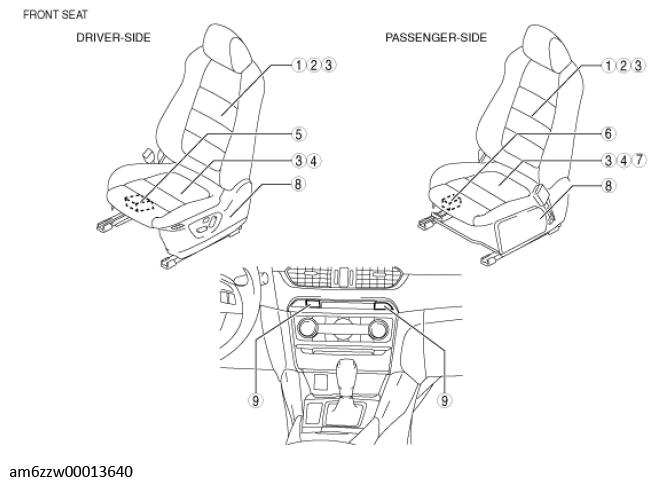

Fig 1: Front Seats Component Location

G11543727

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Front seat (See FRONT SEAT REMOVAL/INSTALLATION .) (See TILT MOTOR INSPECTION .) (See SLIDE MOTOR INSPECTION .) (See LIFT MOTOR INSPECTION .) (See RECLINER MOTOR INSPECTION .)
2	Front seat back (See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION .) (See FRONT SEAT BACK FRAME REMOVAL/INSTALLATION .) (See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .) (See LUMBAR SUPPORT UNIT REMOVAL/INSTALLATION .) (See LUMBAR SUPPORT MOTOR INSPECTION .)
3	Front seat warmer unit (See FRONT SEAT WARMER UNIT INSPECTION .)
4	Front seat cushion (See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .) (See FRONT SEAT CUSHION FRAME/ADJUSTER UNIT REMOVAL/INSTALLATION .)
5	Position memory control module (See POSITION MEMORY CONTROL MODULE REMOVAL/INSTALLATION .) (See POSITION MEMORY CONTROL MODULE INSPECTION .)
6	Front seat warmer control unit (See FRONT SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .) (See FRONT SEAT WARMER CONTROL UNIT INSPECTION .)
7	Occupancy sensor (See OCCUPANCY SENSOR INSPECTION .)
8	Front seat side cover (See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .) (See POWER SEAT SWITCH REMOVAL/INSTALLATION .) (See POWER SEAT SWITCH INSPECTION .) (See POSITION MEMORY SWITCH REMOVAL/INSTALLATION .) (See POSITION MEMORY SWITCH INSPECTION .)
9	Front seat warmer switch (See FRONT SEAT WARMER SWITCH REMOVAL/INSTALLATION .)

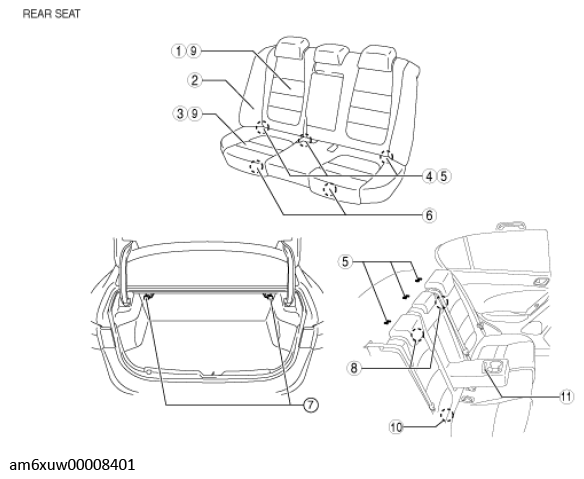

Fig 2: Rear Seats Component Location

G11543728

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .) (See REAR SEAT BACK FRAME REMOVAL/INSTALLATION .) (See REAR SEAT BACK TRIM REMOVAL/INSTALLATION .) (See REAR SEAT CENTER ARMREST REMOVAL/INSTALLATION .) (See REAR SEAT CENTER ARMREST TRIM REMOVAL/INSTALLATION .)
2	Rear seat side back (See REAR SEAT SIDE BACK REMOVAL/INSTALLATION .) (See REAR SEAT SIDE BACK TRIM REMOVAL/INSTALLATION .)
3	Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .) (See REAR SEAT CUSHION TRIM REMOVAL/INSTALLATION .)
4	Rear seat hinge (See REAR SEAT HINGE REMOVAL/INSTALLATION .)
5	Child-restraint seat anchor (See CHILD-RESTRAINT SEAT ANCHOR REMOVAL/INSTALLATION .)
6	Rear seat cushion lock (See REAR SEAT CUSHION LOCK REMOVAL/INSTALLATION .)
7	Remote handle lever (See REMOTE HANDLE LEVER REMOVAL/INSTALLATION .)
8	Rear seat back latch (See REAR SEAT BACK LATCH REMOVAL/INSTALLATION .)
9	Rear seat warmer unit (See REAR SEAT WARMER UNIT INSPECTION .)
10	Rear seat warmer control unit (See REAR SEAT WARMER CONTROL UNIT REMOVAL/INSTALLATION .) (See REAR SEAT WARMER CONTROL UNIT INSPECTION .)
11	Rear seat warmer switch (See REAR SEAT WARMER SWITCH REMOVAL/INSTALLATION .) (See REAR SEAT WARMER SWITCH INSPECTION .)
