Vehicle interior, front

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .
4. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
5. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
6. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
7. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
8. CD player (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
10. Front console (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
Disconnect the connector from the keyless antenna.

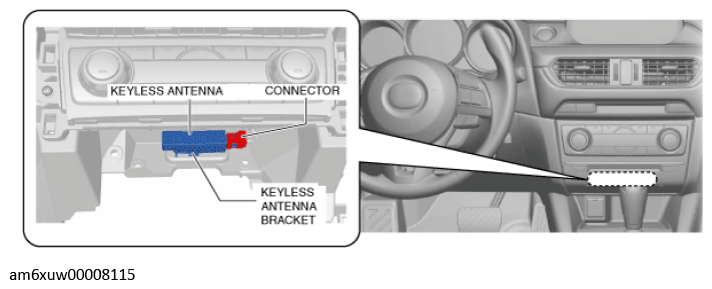

Fig 1: Locating Keyless Antenna, Connector And Antenna Bracket
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Disconnect the connector while holding the keyless antenna, otherwise the keyless antenna bracket could be damaged.
While pressing the keyless antenna bracket tab in the direction of arrow (1) shown in the figure, press it in the direction of arrow (2) to detach the keyless antenna bracket tab from the instrument panel.

Fig 2: Detaching Keyless Antenna Bracket Tab From Instrument Panel
Courtesy of MAZDA MOTORS CORP.
Remove the keyless antenna from the instrument panel.
Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

Fig 3: Detaching Keyless Antenna Bracket From Keyless Antenna
Courtesy of MAZDA MOTORS CORP.
Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure to press the keyless antenna bracket tab, and pull it in the direction of arrow (2) to detach the keyless antenna bracket from the keyless antenna.
Remove the keyless antenna bracket from the keyless antenna.
Install in the reverse order of removal.
