Rear Console Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
Grasp the shaded area shown in the figure, and pull the console panel in the direction of the arrow and remove it while detaching clips.

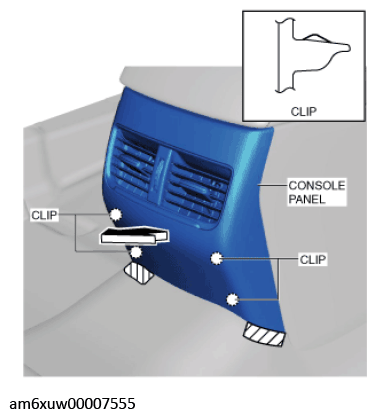

Fig 1: Removing Console Panel With Clips
Courtesy of MAZDA MOTORS CORP.
Pull the console panel in the direction of the arrow and remove it while detaching clips.

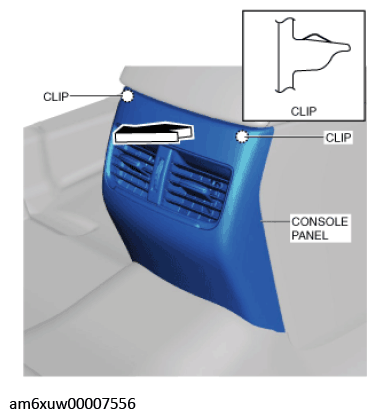

Fig 2: Removing Console Panel With Clips
Courtesy of MAZDA MOTORS CORP.
Remove the cushion tape, then remove screws.

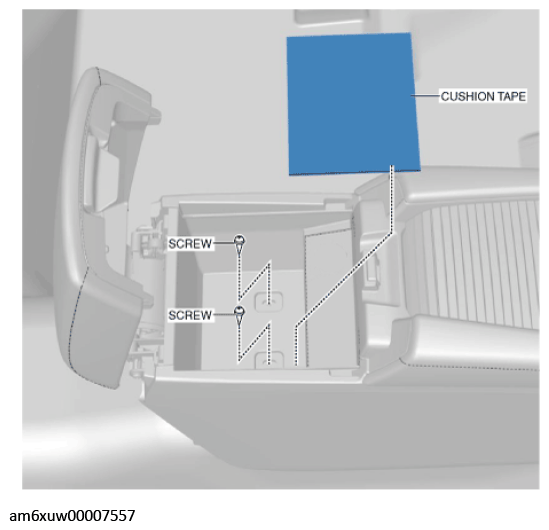

Fig 3: Removing Cushion Tape And Screws
Courtesy of MAZDA MOTORS CORP.
Pull up the console up in the direction of the arrow (1) shown in the figure while remove the clips, pull the console up in the direction of the arrow (2) while remove the guides, and remove it.

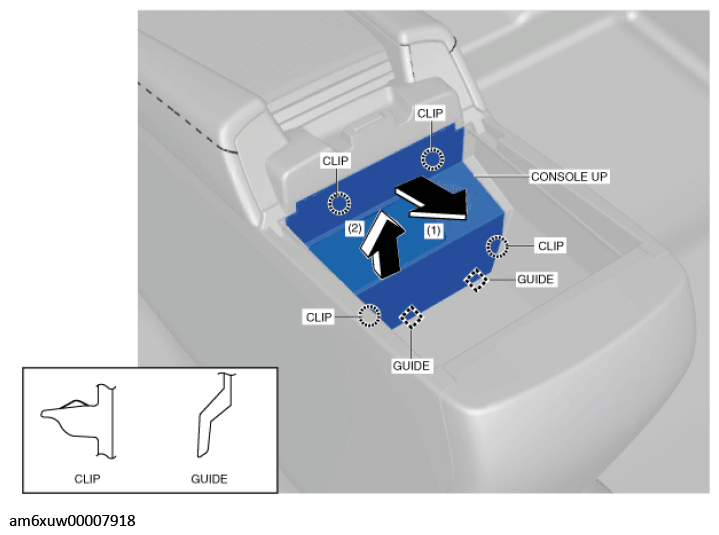

Fig 4: Removing Console Up With Guides And Clips
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the wiring harness clip.
Pull the rear console in the direction of the arrow and remove it from the front console while detaching clips, guides.

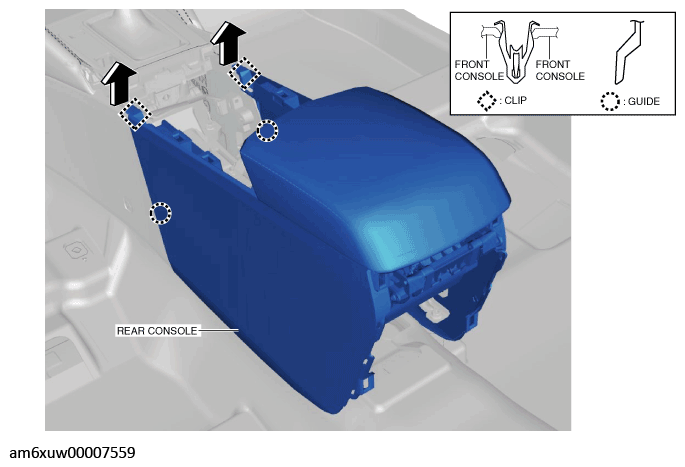

Fig 5: Removing Rear Console From Front Console
Courtesy of MAZDA MOTORS CORP.
Remove the rear console in the direction of the arrow shown in the figure.

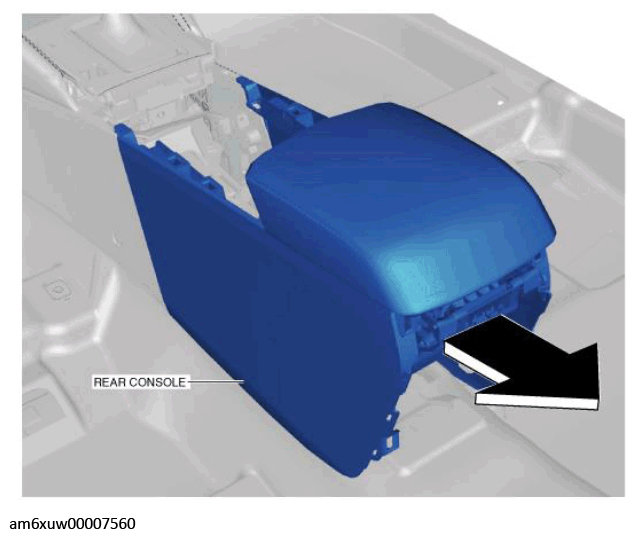

Fig 6: Removing Rear Console
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
