BSM Warning Light Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Power outer mirror (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
4. Outer mirror glass (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
Verify that the continuity between BSM warning light connector terminals is as indicated in the table.

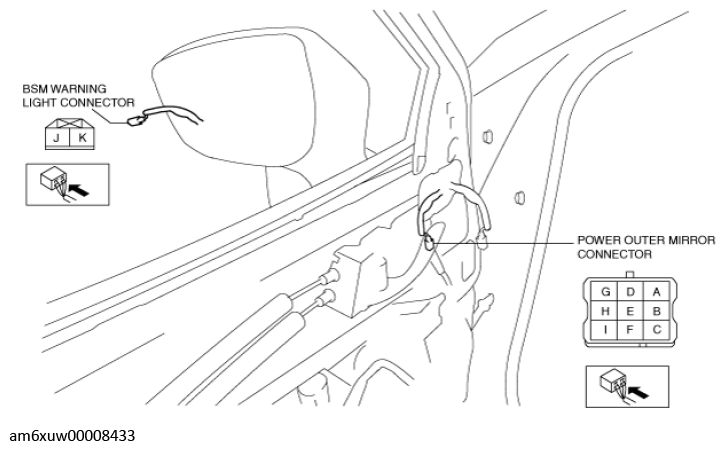

Fig 1: Removing BSM Warning Light Connector
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
Fig 2: BSM Warning Light Connector Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
