Outer Mirror Glass Removal

NOTE:

Removal of the outer mirror glass can be facilitated by warming the back of the glass to approx. 50°C {90°F} to 60° {108°F} degrees using a drier.
Be careful not to overheat the outer mirror, as temperatures higher than 60°C {108°F} degrees could deform it.

Fig 1: Warming Back Of Glass Using Drier

Courtesy of MAZDA MOTORS CORP.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

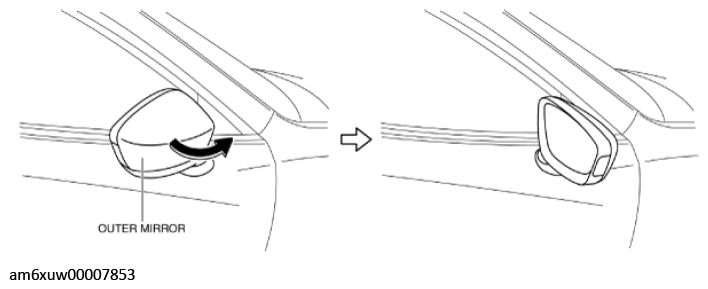

To facilitate removal of the outer mirror glass, orient the outer mirror in the direction of arrow shown in the figure.

Fig 2: Removing Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.
Affix the protective tape to the position shown in the figure to prevent scratches and damage.

Fig 3: Affixing Protective Tape To Outer Mirror Glass
Courtesy of MAZDA MOTORS CORP.

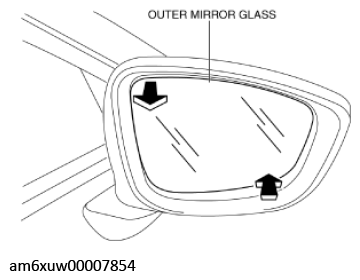

Move the outer mirror glass in the direction of arrow shown in the figure to secure a space for inserting your fingers.

Fig 4: Moving Outer Mirror Glass In Direction Of Arrow
Courtesy of MAZDA MOTORS CORP.

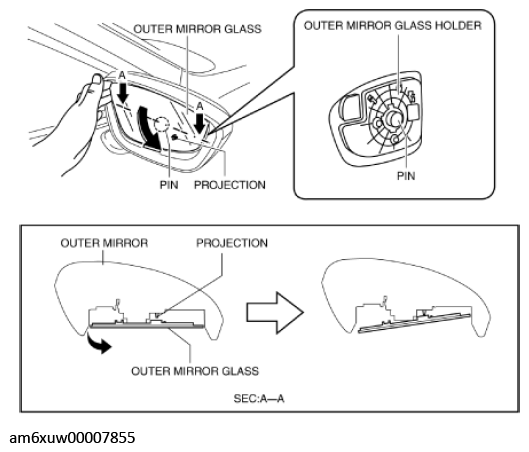

Insert your fingers into the location shown in the figure, move the outer mirror glass in the direction of arrow, and using the projection as the fulcrum point, disengage pin.
CAUTION:
- When moving the outer mirror glass, if only the mirror glass is moved, the mirror glass could separate from the outer mirror glass holder. Move the outer mirror glass holder together with the mirror glass when moving the outer mirror glass.
Fig 5: Removing Outer Mirror Glass Using Fingers
Courtesy of MAZDA MOTORS CORP.

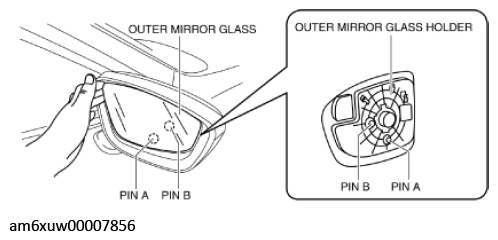

Insert your fingers behind the glass in the same manner as Step 4 and disengage the remaining pins A and B.

Fig 6: Inserting Fingers Behind Glass
Courtesy of MAZDA MOTORS CORP.

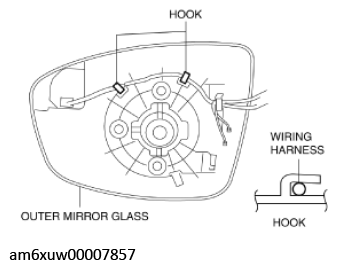

Remove the wiring harness for hooks.

Fig 7: Removing Wiring Harness For Hooks
Courtesy of MAZDA MOTORS CORP.

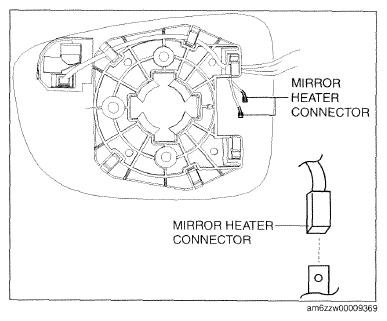

Disconnect the mirror heater connectors. (with heated outer mirror)

Fig 8: Removing Mirror Heater Connectors (With Heated Outer Mirror)
Courtesy of MAZDA MOTORS CORP.

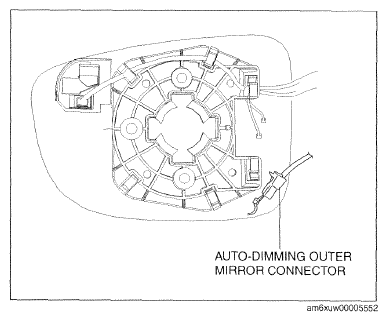

Disconnect the auto-dimming outer mirror connector. (with auto-dimming outer mirror)

Fig 9: Removing Auto-Dimming Outer Mirror Connector (With Auto-Dimming Outer Mirror)
Courtesy of MAZDA MOTORS CORP.
Insert a tape-wrapped flathead screwdriver to the position shown in the figure, remove the BSM indicator light connector. (with blind spot monitoring system)
CAUTION:
- The connector can be easily deformed, therefore do not apply excessive force.
Fig 10: Removing BSM Indicator Light Connector (With Blind Spot Monitoring System) Using Flathead Screwdriver
Courtesy of MAZDA MOTORS CORP.
Remove the mirror glass holder and the outer mirror glass as a single unit.
