Sunroof Unit Disassembly/Assembly: Notes

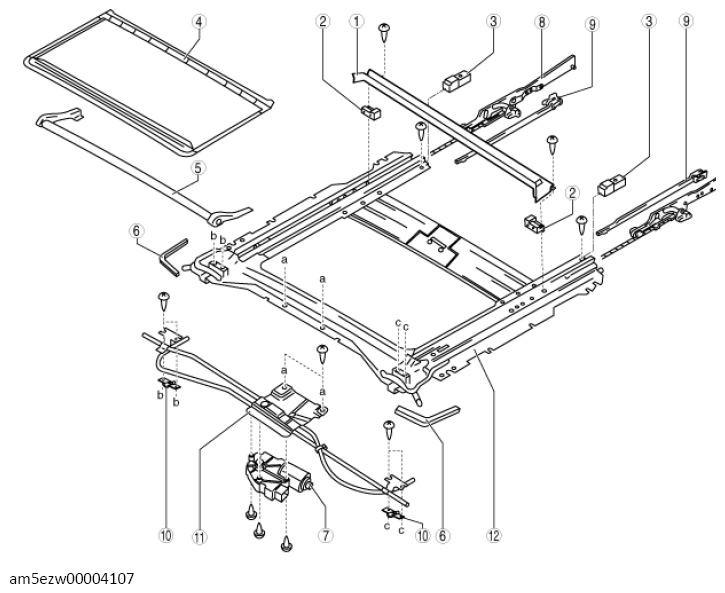

- Disassemble in the order indicated in the table.PART DESCRIPTION
1 Drip rail 2 Set plate 3 Sunshade stopper 4 Sunshade 5 Deflector 6 Cushion 7 Sunroof motor
(See SUNROOF MOTOR ASSEMBLY NOTE .)8 Guide and drive cable
(See GUIDE DISASSEMBLY NOTE .)
(See DECORATION LINK ASSEMBLY NOTE .)9 Shutting 10 Cable guide 11 Drive unit 12 Frame - Assemble in the reverse order of disassembly.
