Decoration Link Assembly Note

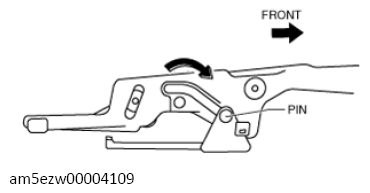

  1. Move the pin to the position shown in the figure.
    G13728279Courtesy of MAZDA MOTORS CORP.

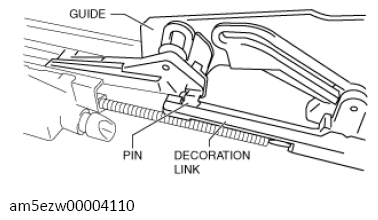

  2. Set the guide pin to the decoration link.
G13728280Courtesy of MAZDA MOTORS CORP.
