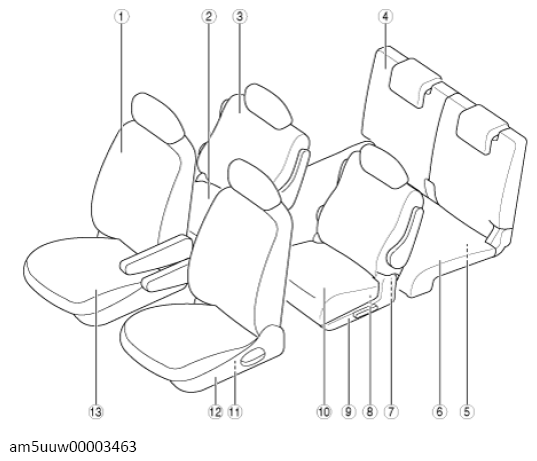

| 1 |
Front seat
(See FRONT SEAT REMOVAL/INSTALLATION .)
(See FRONT SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
(See FRONT SEAT BACK TRIM REMOVAL/INSTALLATION .) |
| 2 |
Second-row seat under tray
(See SECOND-ROW SEAT UNDER TRAY REMOVAL/INSTALLATION .)
(See SECOND-ROW SEAT CENTER TRAY REMOVAL/INSTALLATION .) |
| 3 |
Second-row seat
(See SECOND-ROW SEAT REMOVAL/INSTALLATION .)
(See SECOND-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
(See SECOND-ROW SEAT BACK TRIM REMOVAL/INSTALLATION .) |
| 4 |
Third-row seat
(See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
(See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
(See THIRD-ROW SEAT BACK TRIM REMOVAL/INSTALLATION .) |
| 5 |
Third-row seat under bracket
(See THIRD-ROW SEAT UNDER BRACKET REMOVAL/INSTALLATION .) |
| 6 |
Third-row seat cushion
(See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
(See THIRD-ROW SEAT CUSHION TRIM REMOVAL/INSTALLATION .) |
| 7 |
Second-row seat slide adjuster cover
(See SECOND-ROW SEAT SLIDE ADJUSTER COVER REMOVAL/INSTALLATION .) |
| 8 |
Second-row seat slide adjuster
(See SECOND-ROW SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION .) |
| 9 |
Second-row seat side cover
(See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION .) |
| 10 |
Second-row seat cushion
(See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
(See SECOND-ROW SEAT CUSHION TRIM REMOVAL/INSTALLATION .) |
| 11 |
Front seat slide adjuster
(See FRONT SEAT SLIDE ADJUSTER COVER REMOVAL/INSTALLATION .)
(See FRONT SEAT SLIDE ADJUSTER REMOVAL/INSTALLATION .) |
| 12 |
Front seat side cover
(See FRONT SEAT SIDE COVER REMOVAL/INSTALLATION .) |
| 13 |
Front seat cushion
(See FRONT SEAT CUSHION REMOVAL/INSTALLATION .)
(See FRONT SEAT CUSHION TRIM REMOVAL/INSTALLATION .) |
