Third-Row Seat Back Trim Removal/Installation

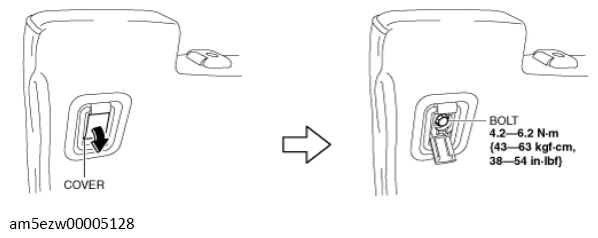

Open the cargo net hook cover, remove the bolt.

Fig 1: Cargo Net Hook Bolt With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the cargo net hook and cargo net hook cover.

Courtesy of MAZDA MOTORS CORP.

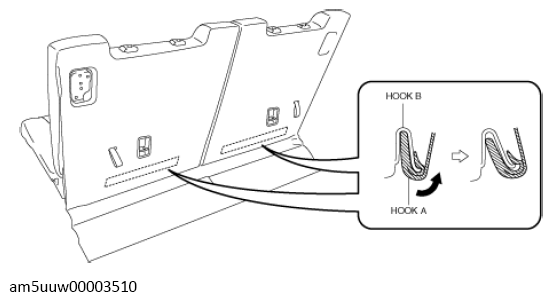

Slide the hook A shown in the figure to detach it from the hook B.

Courtesy of MAZDA MOTORS CORP.

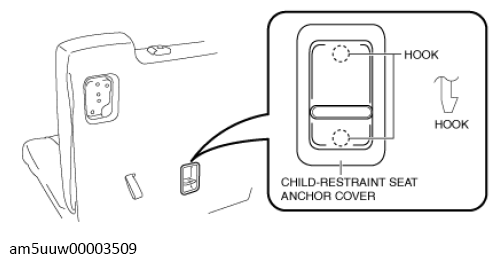

Remove the child-restraint seat anchor covers.

Courtesy of MAZDA MOTORS CORP.

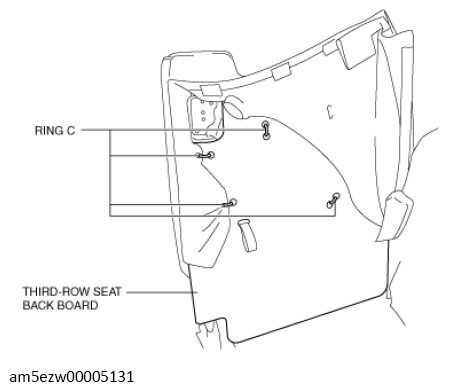

Remove the rings C in the figure, remove the third-row seat back board.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Courtesy of MAZDA MOTORS CORP.
Remove the screws.

Courtesy of MAZDA MOTORS CORP.

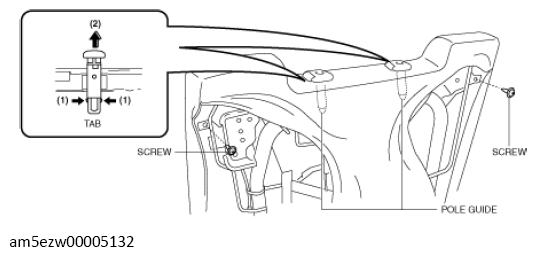

Release the pole guide tabs in the direction of arrow (1) shown in the figure, then pull the pole guide out in the direction of arrow (2).

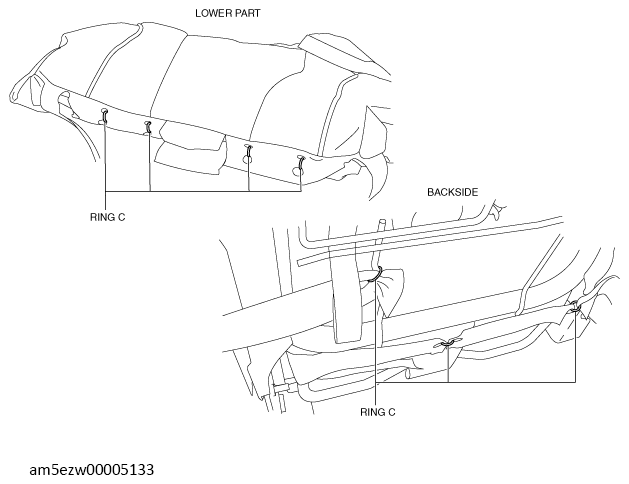

Remove the rings C from the third-row seat back lower part and backside, then remove the third-row seat back trim and the third-row seat back pad from the third-row seat back frame.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Courtesy of MAZDA MOTORS CORP.

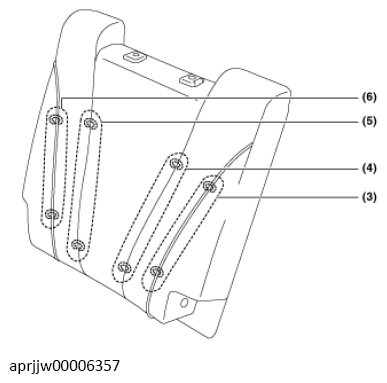

Remove the rings C in the order of (3), (4), (5), (6), then remove the third-row seat back trim from the third-row seat back pad.
CAUTION:
- Be careful not to damage the ring C when removing/installing it. If a damaged ring C is used, it could result in improper installation of the second-row seat cushion trim and the second-row cushion pad.
- If the ring C is damaged, replace the ring C with a new one.
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
