Indicator Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (See SELECTOR LEVER REMOVAL/INSTALLATION .)
2. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
Detach tabs shown in the figure and remove the indicator.

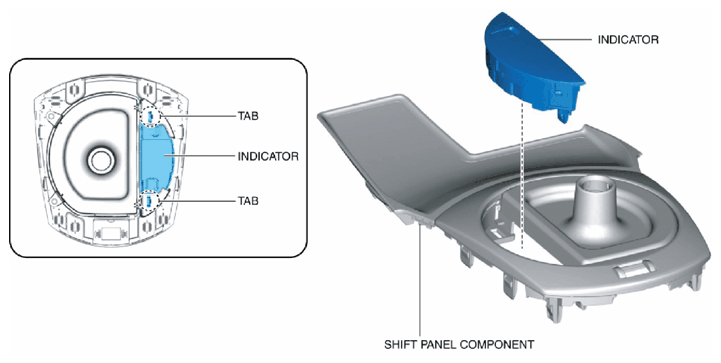

Fig 1: Removing Indicator
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
