Selector Lever Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Perform the following procedure to remove the selector lever knob.
    1. Shift the selector lever to the N range.
    2. Insert the tool (width: 2 mm {0.08 in} or less  , thickness: 1 mm {0.04 in} or less)  as shown in the figure.

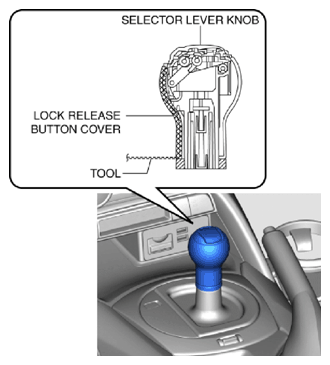

      Fig 1: Inserting Tool To Selector Lever Knob
      G10952957Courtesy of MAZDA MOTORS CORP.
    3. Lift the tool horizontally in the direction of arrow (1) shown in the figure and detach the tab, and then remove the lock release button cover in the direction of arrow (2).

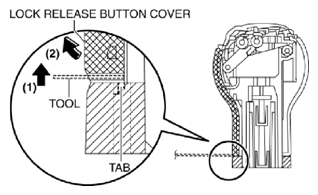

      Fig 2: Removing Lock Release Button Cover
      G10952958Courtesy of MAZDA MOTORS CORP.
    4. Remove the spring.
      Fig 3: Removing Spring
      G10952959Courtesy of MAZDA MOTORS CORP.
    5. Remove the selector lever knob.

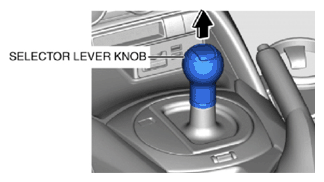

    Fig 4: Removing Selector Lever Knob
    G10952960Courtesy of MAZDA MOTORS CORP.
  3. Remove the following parts:
    1. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
    2. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    3. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
    4. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    5. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
    6. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION .)
  4. Disconnect the connector and wiring harness clip.

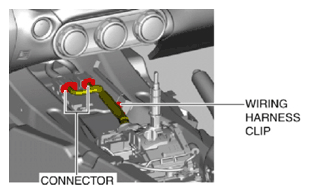

    Fig 5: Disconnecting Connector And Wiring Harness Clip
    G10952961Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the selector lever component connector.
    Fig 6: Disconnecting Selector Lever Component Connector
    G10952962Courtesy of MAZDA MOTORS CORP.
  6. Place alignment marks on the control rod bracket and nut.

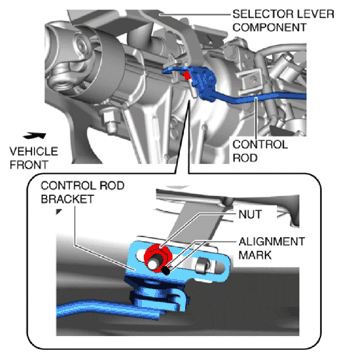

    Fig 7: Placing Alignment Marks On Control Rod Bracket And Nut
    G10952963Courtesy of MAZDA MOTORS CORP.
  7. Remove the nut.

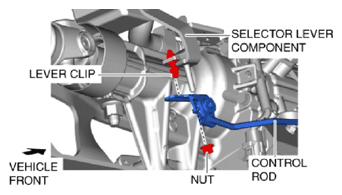

    Fig 8: Removing Nut
    G10952964Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the control rod from the lever clip of the selector lever component.
  9. Remove the nuts from the selector lever component.
    Fig 9: Removing Nuts From Selector Lever Component
    G10952965Courtesy of MAZDA MOTORS CORP.
  10. Set the short cord aside and remove the selector lever component.

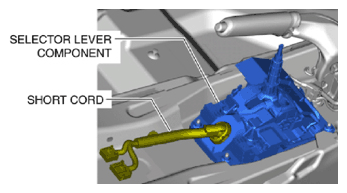

    Fig 10: Removing Selector Lever Component
    G10952966Courtesy of MAZDA MOTORS CORP.
  11. Pass the short cord through the installation hole and install the selector lever component.
  12. Install the nuts to the selector lever component.

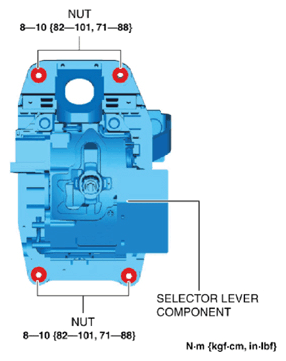

    Fig 11: Installing Nuts To Selector Lever Component
    G10952967Courtesy of MAZDA MOTORS CORP.
  13. Assemble the control rod to the lever clip of the selector lever component.

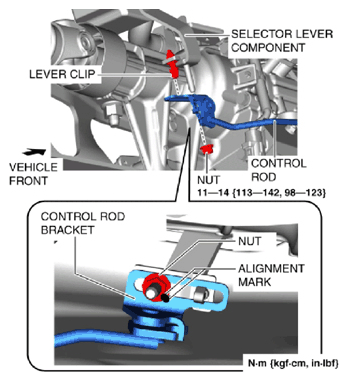

    Fig 12: Assembling Control Rod To Lever Clip Of Selector Lever Component
    G10952968Courtesy of MAZDA MOTORS CORP.
  14. Align the alignment marks on the control rod bracket and nut, and install the nut.
  15. Connect the selector lever component connector.
    Fig 13: Connecting Selector Lever Component Connector
    G10952969Courtesy of MAZDA MOTORS CORP.
  16. Connect the connector and wiring harness clip.
    Fig 14: Connecting Connector And Wiring Harness Clip
    G10952970Courtesy of MAZDA MOTORS CORP.
  17. Install the following parts:
    1. Front console component (See FRONT CONSOLE REMOVAL/INSTALLATION .)
    2. Front console panel (See FRONT CONSOLE PANEL REMOVAL/INSTALLATION .)
    3. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
    4. Parking brake lever boot panel (See PARKING BRAKE LEVER BOOT PANEL REMOVAL/INSTALLATION .)
    5. Upper panel (See UPPER PANEL REMOVAL/INSTALLATION .)
    6. Shift panel component (See SHIFT PANEL REMOVAL/INSTALLATION .)
  18. Perform the following procedure to install the selector lever knob.
    1. Install the spring to the selector lever knob.

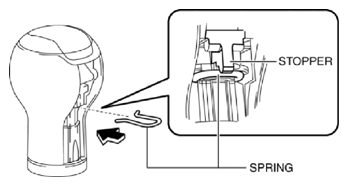

      Fig 15: Installing Spring To Selector Lever Knob
      G10952971Courtesy of MAZDA MOTORS CORP.
      CAUTION:
      • Install the spring so that it is stopped by the stopper.
    2. Install the lock release button cover to the selector lever knob.
      Fig 16: Installing Lock Release Button Cover To Selector Lever Knob
      G10952972Courtesy of MAZDA MOTORS CORP.
      1. Attach the lock release button cover hook to the position on the selector lever knob shown in the figure.
      2. Press the lower end of the lock release button cover in the direction of the arrow and press in the tab.
    3. Install the selector lever knob to the selector lever component.

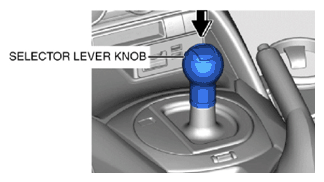

      Fig 17: Installing Selector Lever Knob To Selector Lever Component
      G10952973Courtesy of MAZDA MOTORS CORP.
    4. Pull the select lever knob upward and verify that it is securely installed.
  19. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
