Parking Sensor Buzzer Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (Refer to LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (Refer to LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess cover (Refer to LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (With power liftgate (PLG) system) (Refer to POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (Refer to LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

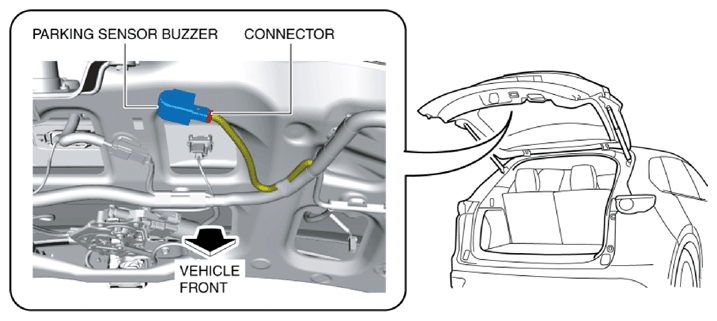

    Fig 1: Identifying Parking Sensor Buzzer And Connector
    G10950898Courtesy of MAZDA MOTORS CORP.
  4. While pressing the parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the parking sensor buzzer in the direction of arrow (2) to detach the parking sensor buzzer tabs from the liftgate.
    Fig 2: Pulling Parking Sensor Buzzer
    G10950899Courtesy of MAZDA MOTORS CORP.
  5. Remove the parking sensor buzzer.
  6. Install in the reverse order of removal.
