Liftgate Recess Removal/Installation

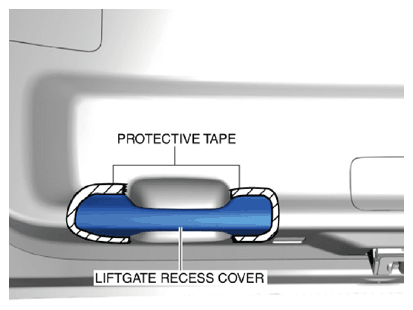

Affix protective tape to the position shown in the figure.

Fig 1: Affixing Protective Tape To Position
Courtesy of MAZDA MOTORS CORP.

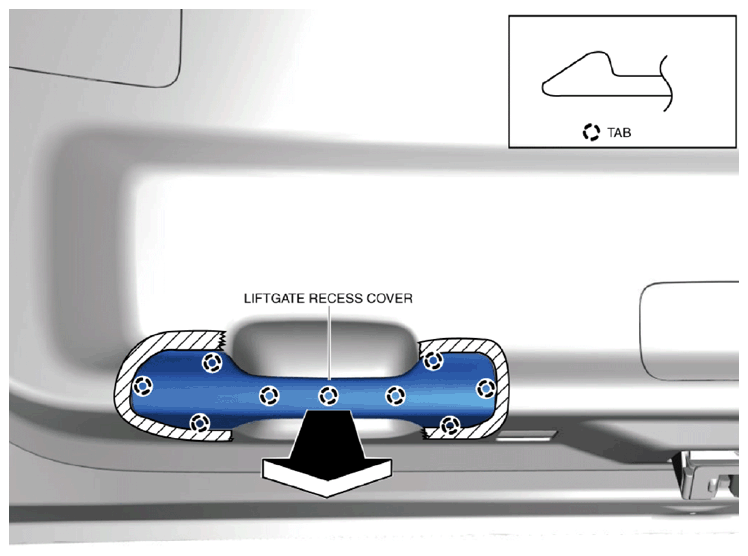

Using the remover tool, remove the liftgate recess cover in the direction of arrow shown in the figure while detaching the tabs.

Fig 2: Removing Liftgate Recess Cover
Courtesy of MAZDA MOTORS CORP.

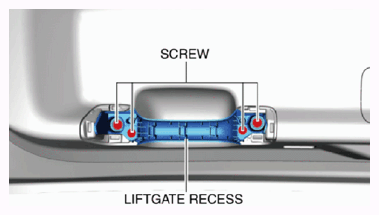

Remove the screws.

Fig 3: Removing Screws
Courtesy of MAZDA MOTORS CORP.
Remove the liftgate recess.
Install in the reverse order of removal.
