Front Mudguard Removal/Installation

  1. Remove the front deflector. (Refer to FRONT DEFLECTOR REMOVAL/INSTALLATION .)
  2. Remove the front over fender. (Refer to FRONT OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove the screw and fasteners.

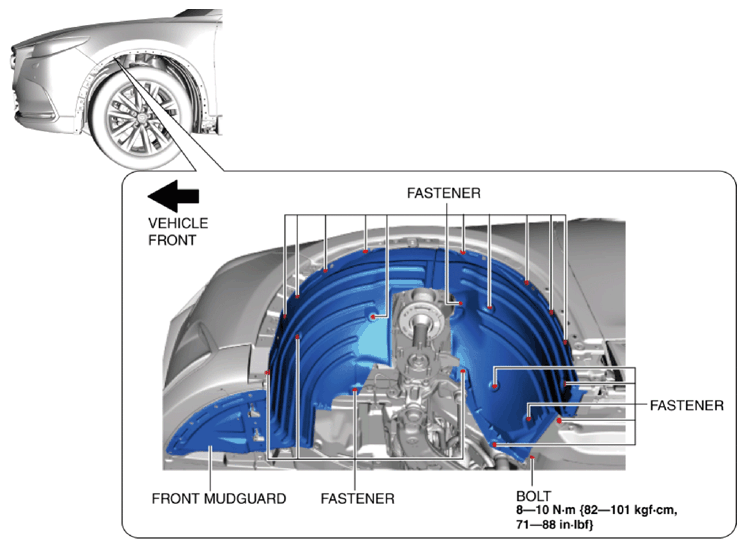

    Fig 1: Identifying Front Mudguard, Fasteners And Bolts With Torque Specification
    G10950040Courtesy of MAZDA MOTORS CORP.
  4. Pull the front mudguard in the direction of the arrow shown in the figure and remove it.

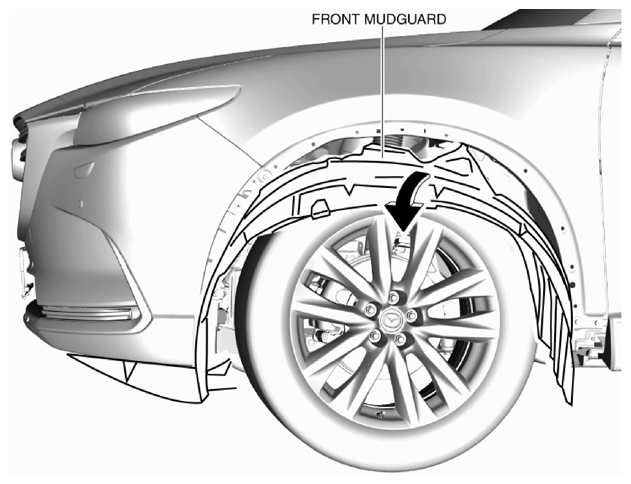

    Fig 2: Pulling Front Mudguard
    G10950041Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
