Front Deflector Removal/Installation

  1. Remove the screws and fasteners.

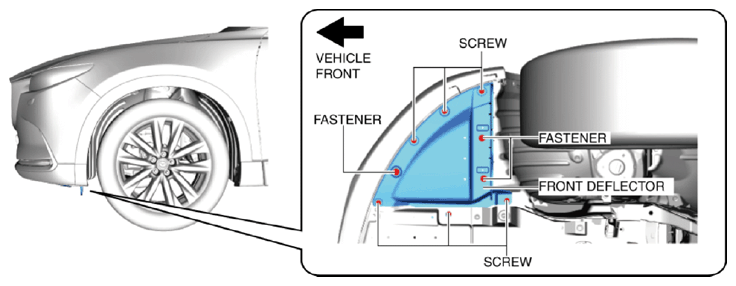

    Fig 1: Identifying Front Deflector, Screws And Fasteners
    G10950065Courtesy of MAZDA MOTORS CORP.
  2. Move the front deflector in the direction of the arrow shown in the figure and remove the front deflector from the front mudguard while detaching the hooks.

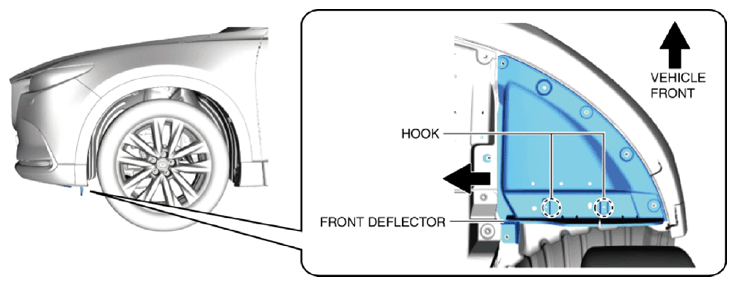

    Fig 2: Removing Front Deflector
    G10950066Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
