Buckle Switch Inspection

  1. Switch the ignition to off.
  2. Disconnect the negative battery cable and wait for 1 min or more.  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  4. Remove the front buckle. (See FRONT BUCKLE REMOVAL/INSTALLATION .)
  5. Inspect for continuity between the buckle switch terminals using a tester.

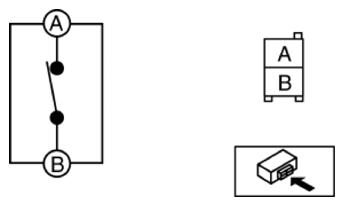

    Fig 1: Buckle Switch Circuit Diagram
    G10938013Courtesy of MAZDA MOTORS CORP.
    • If not as indicated in the table, replace the front buckle.

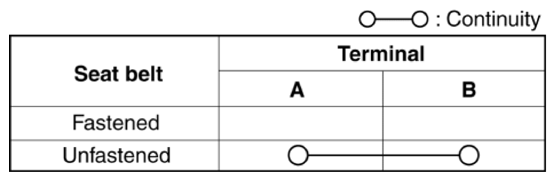

    Fig 2: Buckle Switch Terminal Continuity Chart
    G10938014Courtesy of MAZDA MOTORS CORP.
