Front Buckle Removal/Installation

  1. Disconnect the negative battery cable and wait for 1 min or more.  (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Disconnect the front buckle connector.

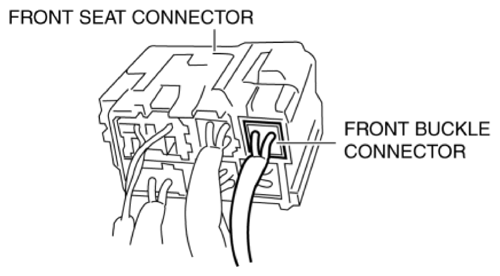

    Fig 1: Identifying Front Buckle Connector And Front Seat Connector
    G10938008Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.

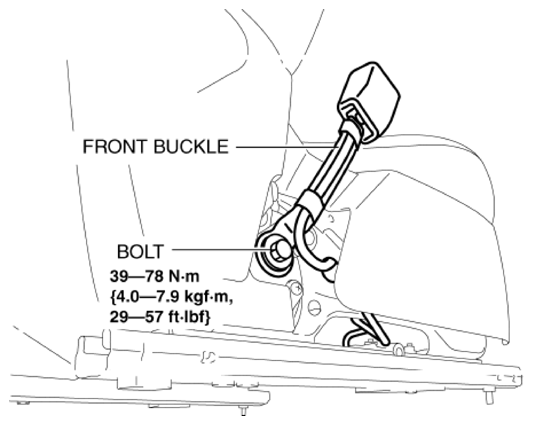

    Fig 2: Identifying Front Buckle And Bolt With Torque Specification
    G10938009Courtesy of MAZDA MOTORS CORP.
  5. Remove the front buckle.
  6. Install in the reverse order of removal.
