Rear Buckle Removal/Installation: Notes

  1. Switch the ignition off.
  2. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  3. Remove the rear seat cushion. (Refer to REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  4. Remove the bolts.

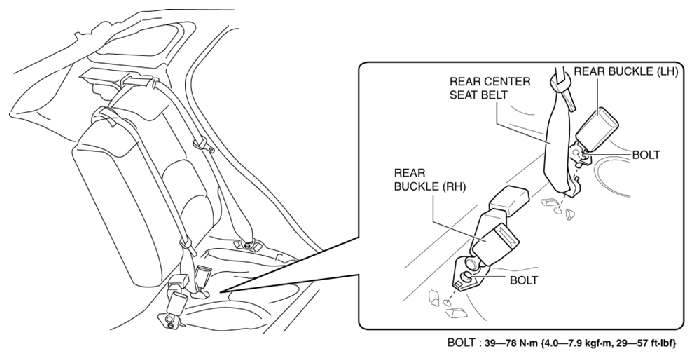

    Fig 1: Rear Center Seat Belt, Bolts, Rear Buckle LH And RH With Torque Specifications
    G10910731Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear buckle (RH) and rear buckle (LH).
  6. Install in the reverse order of removal. (Refer to Rear Buckle Installation Note .)
