Rear Buckle Installation Note
After installing the rear buckle, place it as shown in the graphic.

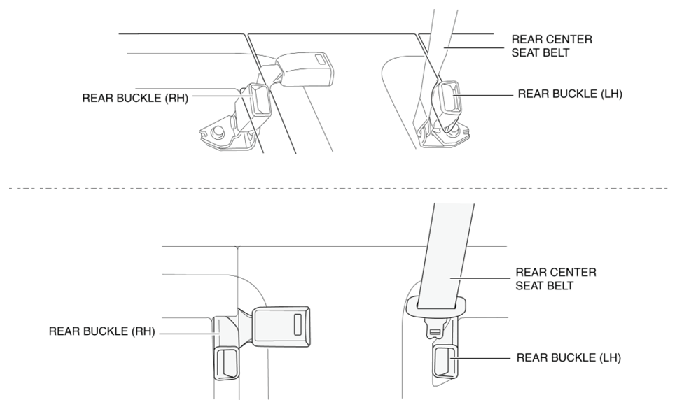

Fig 1: Rear Center Seat Belt, Rear Buckle LH And RH Placement
Courtesy of MAZDA MOTORS CORP.
