Lower Panel Removal/Installation: Passenger-side: Installation
WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

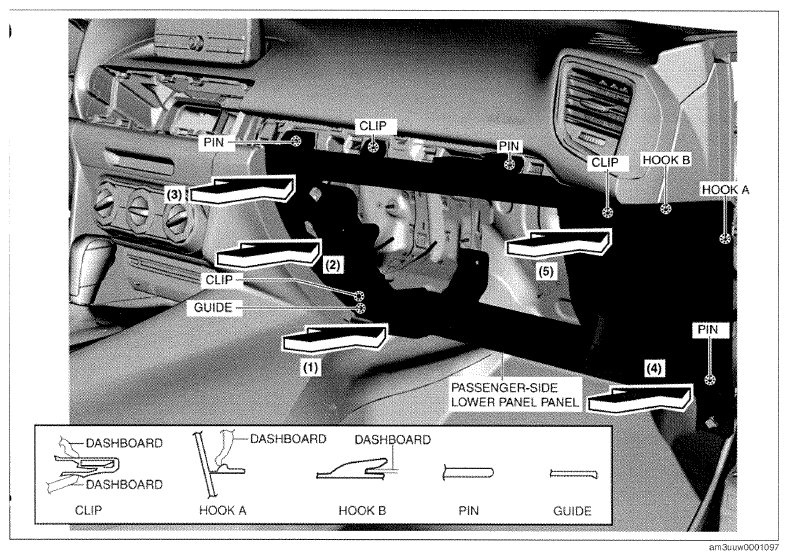

- Install clips, hook A, hook B, pin and guide while pressing the shaded area shown in the figure for the passenger-side lower panel in the direction of the arrow in the order of (1), (2), (3), (4) and (5).

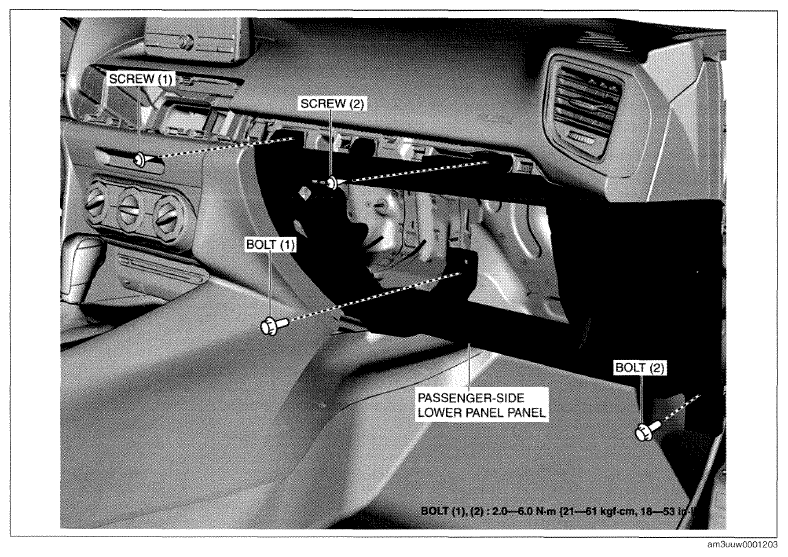

- Install screw (1).
- Install screw (2).
- Install bolt (1).
- Install bolt (2).
- Install the following parts:
- Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
- Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
- Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
- Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
- Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
- Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

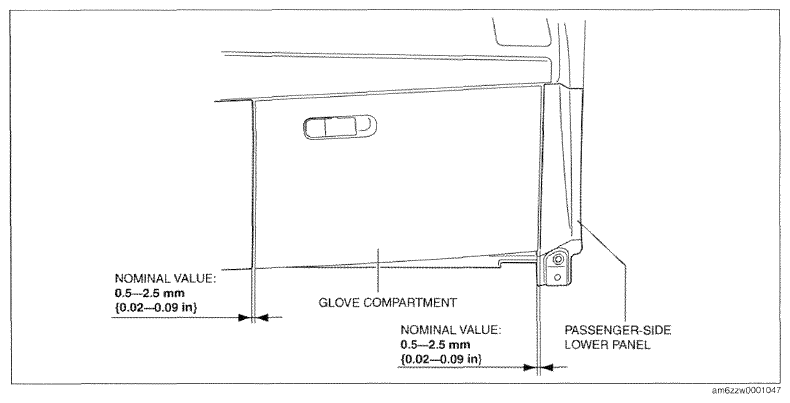

- After installing the passenger-side lower panel and glove compartment, measure the clearance, and verify that the measurement value is within the specification shown in the figure.
- If the measurement value is not within the specification after measuring the clearance between the passenger-side lower panel and glove compartment, adjust the passenger-side lower panel to the proper position. (See PASSENGER-SIDE LOWER PANEL ADJUSTMENT .)
