SAS Control Module Connector Cover Removal/Installation [Standard Deployment Control System]: Installation

WARNING: This page is about a different car, the 2014 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Install the SAS control module connector cover to the SAS control module connector.

Fig 1: Installing SAS Control Module Connector
Courtesy of MAZDA MOTORS CORP.
Connect the SAS control module connectors.

Fig 2: Connecting SAS Control Module With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install the SAS control module.
Install the nuts.
Install the bracket.
Install the bolts.
Install the following parts:
1. Parking brake lever. (See PARKING BRAKE LEVER REMOVAL/INSTALLATION .)
2. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL ) (See UPPER PANEL INSTALLATION .)
Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

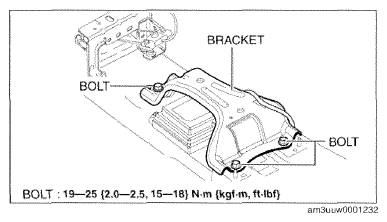

Fig 3: Bracket And Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Switch the ignition ON (engine off or on).
Verify that the air bag/front seat belt pre-tensioner system warning light turns on for approx. 6 s and turns off.
- If the air bag/front seat belt pre-tensioner system warning light does not operate properly, refer to the on-board diagnostic system and inspect the system. (See FLOWCHART [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
