Windshield Wiper Motor And Link Removal/Installation: Notes

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
CAUTION:
- Always affix protective tape to the windshield end. If the windshield wiper motor and link contacts the windshield, it could damage the windshield.

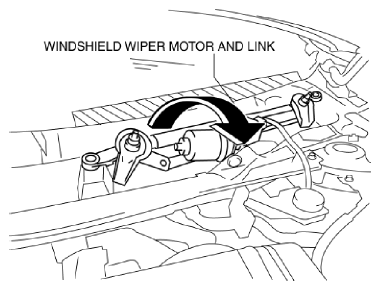

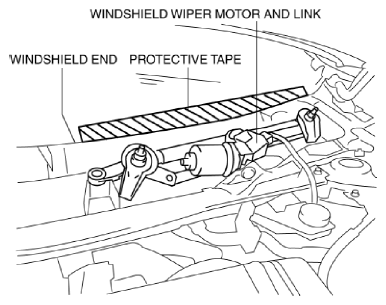

Affix protective tape to the area where the windshield end interferes with the windshield motor and link as shown in the figure.

Fig 1: Affixing Protective Tape To Area
Courtesy of MAZDA MOTORS CORP.

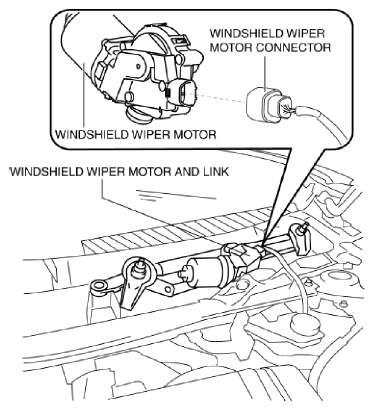

Disconnect the windshield wiper motor connector.

Fig 2: Disconnecting Windshield Wiper Motor Connector
Courtesy of MAZDA MOTORS CORP.

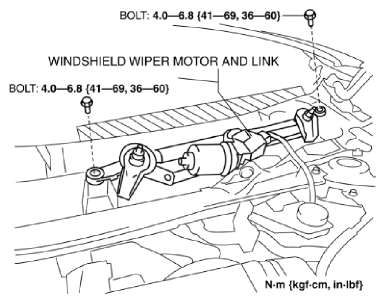

Remove bolts.

Fig 3: Removing Bolts
Courtesy of MAZDA MOTORS CORP.

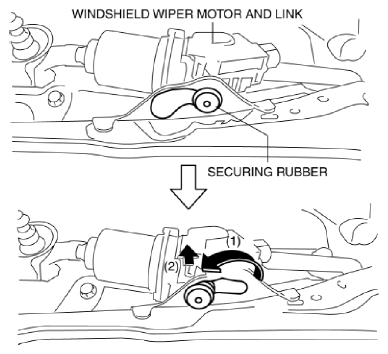

Move the windshield wiper motor and link in the order of the arrows (1) and (2) to remove the securing rubber from the vehicle.

Fig 4: Moving Windshield Wiper Motor And Link
Courtesy of MAZDA MOTORS CORP.
Remove the windshield wiper motor and link from the vehicle in the direction of the arrow while being careful not to allow the windshield end to interfere with the windshield wiper motor and link.

Fig 5: Removing Windshield Wiper Motor And Link From Vehicle
Courtesy of MAZDA MOTORS CORP.

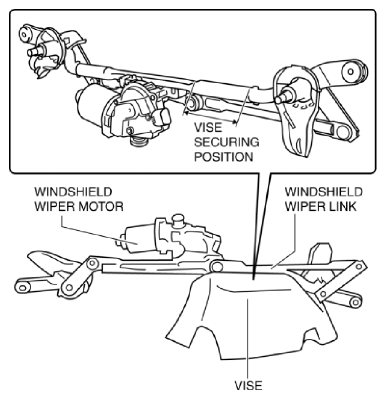

Fix the position of the windshield wiper link shown in the figure with a vise.

Fig 6: Fixing Windshield Wiper Link With Vise
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the vise is tightened with excessive force, it could deform or damage the windshield wiper link. When securing the windshield wiper link in the vise, be careful not to deform or damage the windshield wiper link.
- Protect the windshield wiper link by placing a rag in the vise when securing it in the vise. Otherwise, it could damage the vise securing position.

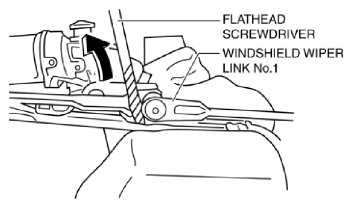

Insert a tape-wrapped flathead screwdriver into the position as shown in the figure, move the flathead screwdriver in the direction of the arrow, and remove the windshield wiper motor and ball joint for the windshield wiper link No. 1.

Fig 7: Removing Windshield Wiper Motor And Windshield Wiper Link No. 1 Ball Joint
Courtesy of MAZDA MOTORS CORP.

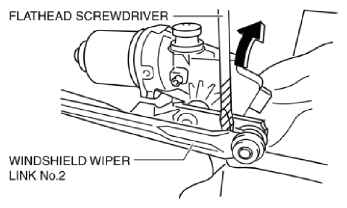

Insert a tape-wrapped flathead screwdriver into the position as shown in the figure, move the flathead screwdriver in the direction of the arrow, and remove the windshield wiper motor and ball joint for the windshield wiper link No. 2.

Fig 8: Removing Windshield Wiper Motor And Windshield Wiper Link No. 2 Ball Joint
Courtesy of MAZDA MOTORS CORP.

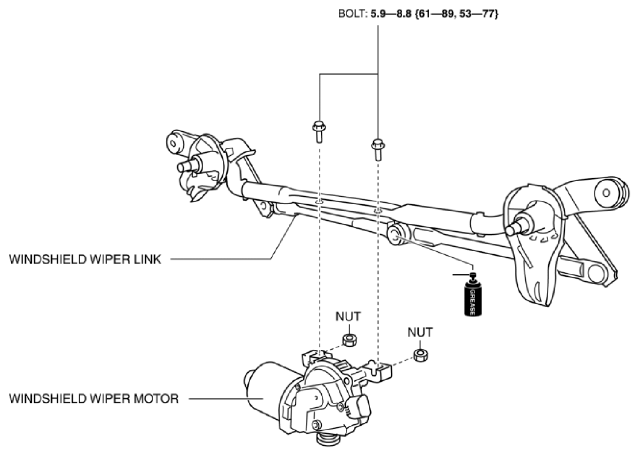

Remove bolts securing the windshield wiper motor and windshield wiper link, and remove nuts from windshield wiper motor.

Fig 9: Removing Nuts From Windshield Wiper Motor
Courtesy of MAZDA MOTORS CORP.
Remove the windshield wiper motor from the windshield wiper link.
Install in the reverse order of removal. (See BALL JOINT ASSEMBLY NOTE .)
