Ball Joint Assembly Note

  1. When assembling the ball joint, use a clean rag to protect the link and squeeze using a pair of protective tape-wrapped pliers.

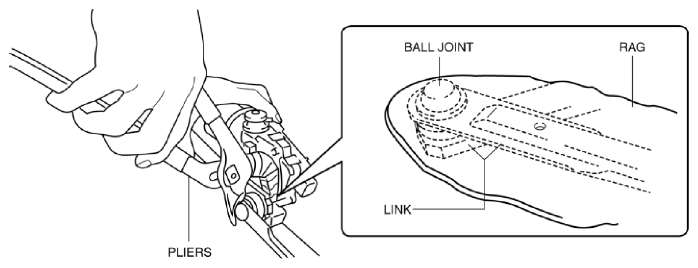

    Fig 1: Assembling Ball Joint
    G10988088Courtesy of MAZDA MOTORS CORP.
