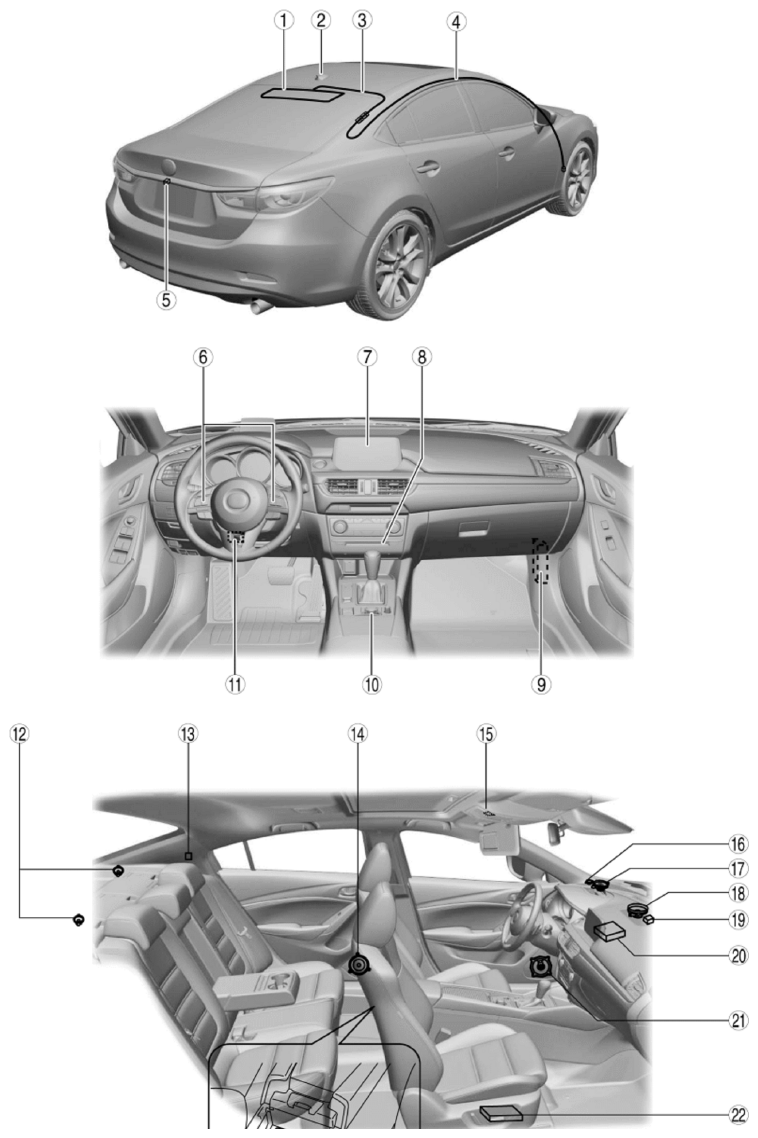

| 1 |
Glass antenna
(See GLASS ANTENNA INSPECTION .) |
| 2 |
Center roof antenna (with SiriusXM satellite radio system)
(See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .)
(See CENTER ROOF ANTENNA INSPECTION .) |
| 3 |
Antenna amplifier
(See ANTENNA AMPLIFIER REMOVAL/INSTALLATION .)
(See ANTENNA AMPLIFIER INSPECTION .) |
| 4 |
Antenna feeder No. 2
(See ANTENNA FEEDER No. 2 REMOVAL/INSTALLATION .)
(See ANTENNA FEEDER No. 2 INSPECTION .) |
| 5 |
Rear mount camera (with parking assist system)
(See REAR MOUNT CAMERA REMOVAL/INSTALLATION .)
(See REAR MOUNT CAMERA INSPECTION .) |
| 6 |
Steering switch
(See STEERING SWITCH REMOVAL/INSTALLATION .)
(See STEERING SWITCH INSPECTION .) |
| 7 |
Center display
(See CENTER DISPLAY REMOVAL/INSTALLATION .)
(See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .) |
| 8 |
CD player
(See CD PLAYER REMOVAL .)
(See CD PLAYER INSTALLATION .) |
| 9 |
Tuner and amp unit (TAU)
(See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
(See TUNER AND AMP UNIT (TAU) BRACKET REMOVAL/INSTALLATION .) |
| 10 |
Commander switch
(See COMMANDER SWITCH REMOVAL/INSTALLATION .) |
| 11 |
AudioPilot® microphone (with Bose®)
(See AudioPilot® MICROPHONE REMOVAL/INSTALLATION .) |
| 12 |
Rear speaker (with Bose®)
(See REAR SPEAKER REMOVAL/INSTALLATION .)
(See REAR SPEAKER INSPECTION .) |
| 13 |
Condenser
(See CONDENSER REMOVAL/INSTALLATION .) |
| 14 |
Rear door speaker
(See REAR DOOR SPEAKER REMOVAL/INSTALLATION .)
(See REAR DOOR SPEAKER INSPECTION .) |
| 15 |
Microphone
(See MICROPHONE REMOVAL/INSTALLATION .) |
| 16 |
Tweeter (with Bose ®)
(See TWEETER REMOVAL/INSTALLATION .)
(See TWEETER INSPECTION .) |
| 17 |
Front side speaker (with Bose ®)
(See FRONT SIDE SPEAKER REMOVAL/INSTALLATION .)
(See FRONT SIDE SPEAKER INSPECTION .) |
Tweeter (without Bose ®)
(See TWEETER REMOVAL/INSTALLATION .)
(See TWEETER INSPECTION .) |
| 18 |
Front center speaker (with Bose ®)
(See FRONT CENTER SPEAKER REMOVAL/INSTALLATION .
(See FRONT CENTER SPEAKER INSPECTION .) |
| 19 |
GPS antenna
(See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .) |
| 20 |
Connectivity master unit (CMU)
(See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .)
(See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .)
(See Bluetooth® PAIRING PROCEDURE .)
(See MAINTENANCE MONITOR OPERATION PROCEDURE .) |
| 21 |
Front door speaker
(See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
(See FRONT DOOR SPEAKER INSPECTION .) |
| 22 |
Audio amplifier (with Bose ®)
(See AUDIO AMPLIFIER REMOVAL/INSTALLATION .) |
| 23 |
Auxiliary jack/USB port/SD card slot hub
(See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .)
(See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .) |
