Front Side Speaker Removal/Installation

NOTE:
  • If the procedure is performed while holding the front side speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the side speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
  3. Remove the screws.

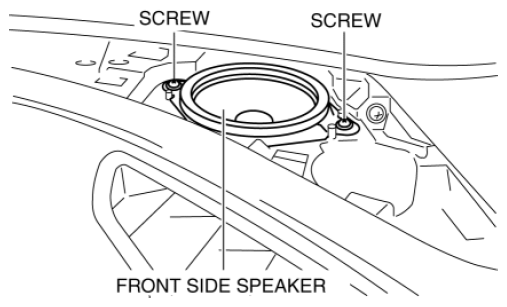

    Fig 1: Identifying Front Side Speaker Screws
    G10988183Courtesy of MAZDA MOTORS CORP.
  4. Remove the front side speaker.
  5. Disconnect the connector.

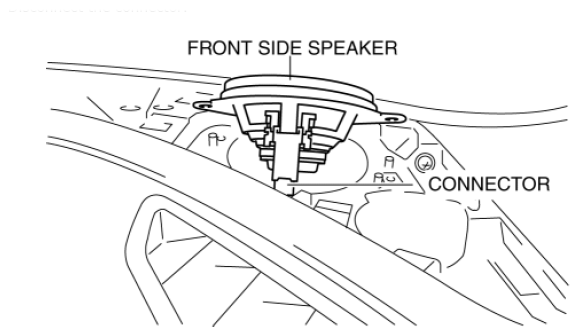

    Fig 2: Identifying Front Side Speaker Connector
    G10988184Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
