Headliner Removal/Installation

Disconnect the negative battery cable.
Remove the following parts:
1. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
2. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
3. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
4. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
5. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
6. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
7. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
8. Adjuster anchor cover (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
9. Upper anchor of the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
11. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
12. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
13. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
14. Third-row seat belt lower anchor installation bolt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
15. Cargo compartment light (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
16. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
17. Second-row seat belt upper anchor installation bolt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION .)
18. Rear header trim (See REAR HEADER TRIM REMOVAL/INSTALLATION .)
19. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)

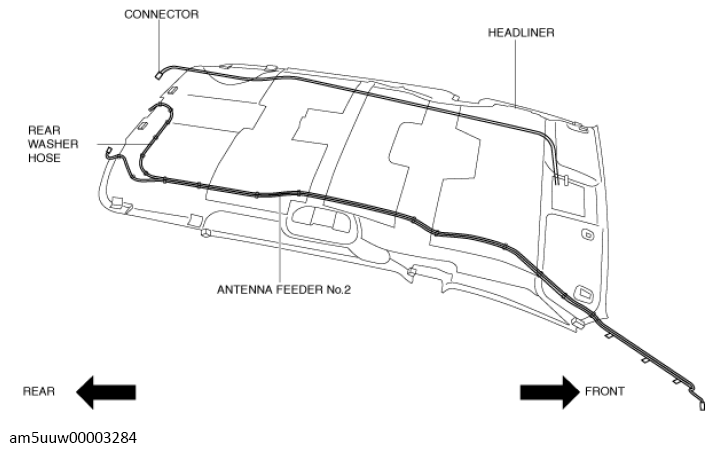

Disconnect the antenna feeder No. 2.

Courtesy of MAZDA MOTORS CORP.
Disconnect the rear washer hose.
Disconnect the connector.

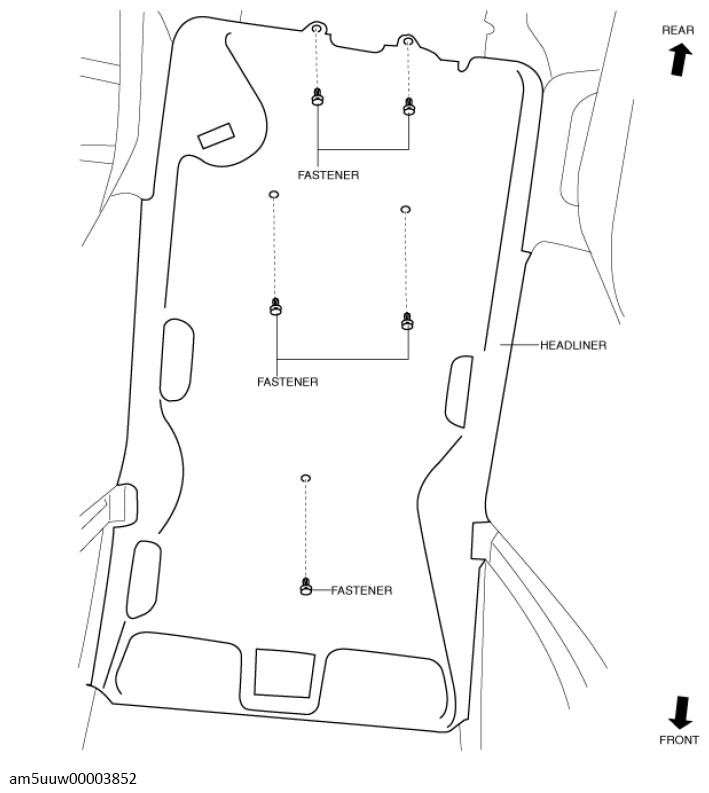

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Take the headliner out from the opened liftgate.
Install in the reverse order of removal.
