Third-Row Seat Removal/Installation

  1. Remove the rear package tray lid. (See REAR PACKAGE TRAY LID REMOVAL/INSTALLATION .)
  2. Remove the floor covering installation fasteners. (See FLOOR COVERING REMOVAL/INSTALLATION .)

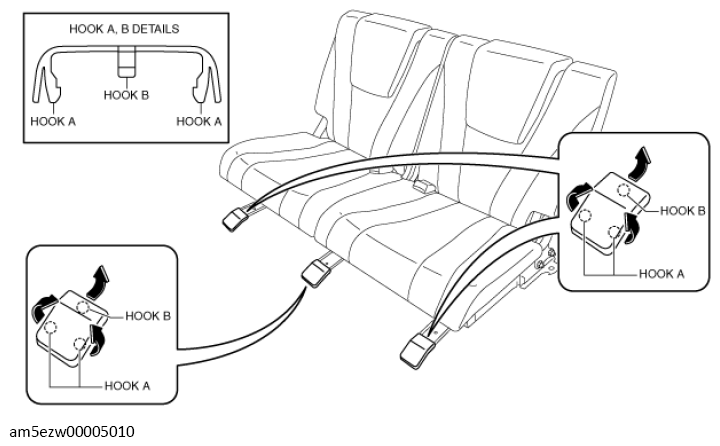

  3. Detach the hook A and B, remove the covers.
    G13728161Courtesy of MAZDA MOTORS CORP.

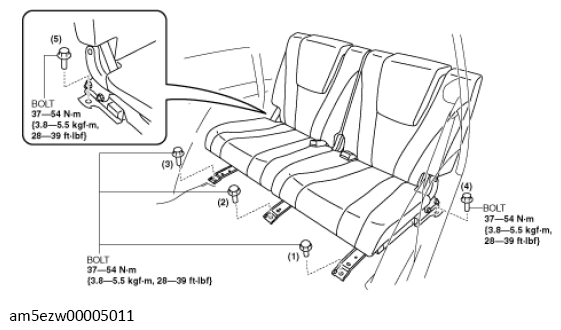

  4. Remove the bolts in the order of (1), (2), (3), (4), (5), then remove the third-row seat.
    Fig 1: Third-Row Seat Bolts With Torque Specification
    G13728162Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
