Washer Fluid-Level Sensor Inspection
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the set plate. (Refer to SET PLATE REMOVAL/INSTALLATION .)
- Remove the front bumper. (Refer to FRONT BUMPER REMOVAL/INSTALLATION .)
- Disconnect the connector. (Refer to WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)

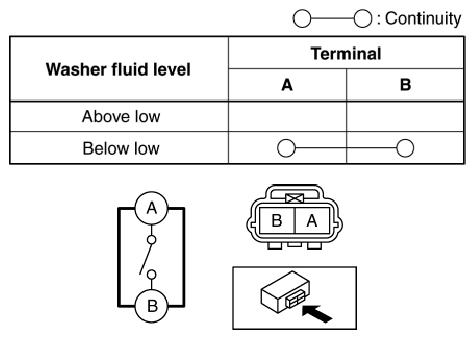

- Verify that the continuity between the washer fluid-level sensor terminals is as indicated in the table.
- If not as indicated in the table, replace the washer fluid-level sensor. (Refer to WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION .)
