Washer Fluid-Level Sensor Removal/Installation

NOTE:

If the procedure is performed with washer fluid in the washer tank, the washer fluid may leak out. When performing the procedure, place a container under the washer tank to collect washer fluid, and perform the procedure.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the set plate. (Refer to SET PLATE REMOVAL/INSTALLATION .)
Remove the front bumper. (Refer to FRONT BUMPER REMOVAL/INSTALLATION .)
Disconnect the connector.

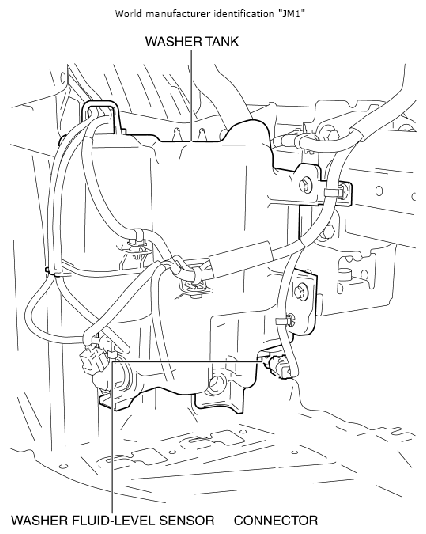

Fig 1: Identifying Washer Tank, Washer Fluid Level Sensor And Connector (JM1)
Courtesy of MAZDA MOTORS CORP.

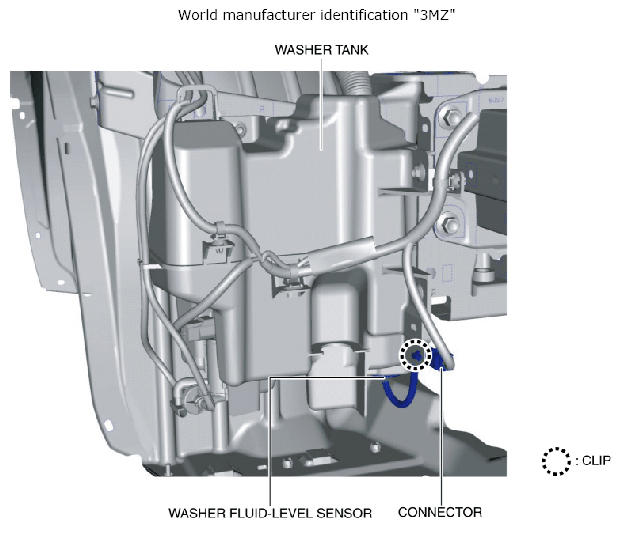

Fig 2: Identifying Washer Tank, Washer Fluid Level Sensor And Connector (3MZ)
Courtesy of MAZDA MOTORS CORP.

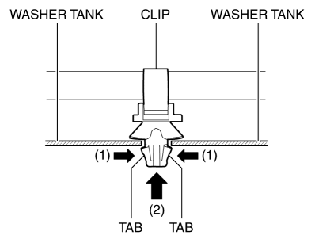

Press out the clip in the direction of arrow (1) shown in the figure while pressing the clip tabs in the direction of arrows (2) shown in the figure, and remove the clip from the washer tank. (world manufacturer identification "3MZ")

Fig 3: Removing Washer Tank Clip
Courtesy of MAZDA MOTORS CORP.
Remove the washer fluid-level sensor.

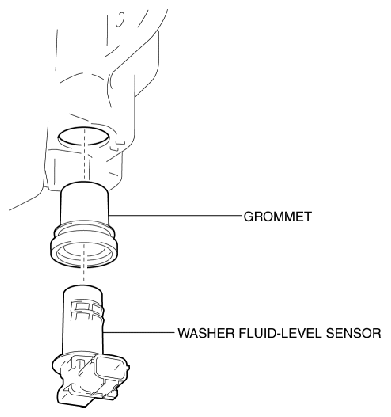

Fig 4: Identifying Washer Fluid-Level Sensor And Grommet
Courtesy of MAZDA MOTORS CORP.
Remove the grommet.
Install in the reverse order of removal.
