Steering Shift Switch Removal/Installation: Notes
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

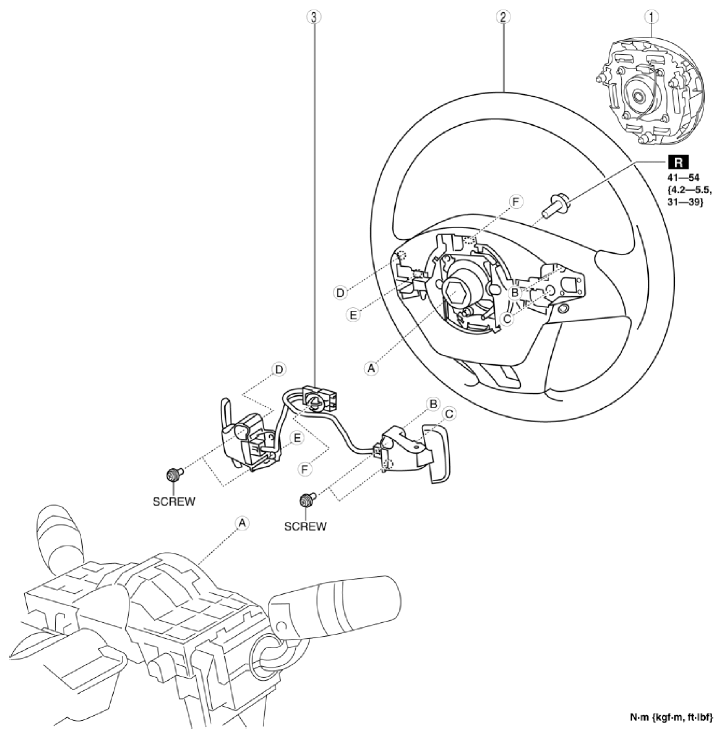

- Remove in the order indicated in the table.COMPONENT DESCRIPTION
1 Driver-side air bag module
(See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
(See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM] .)
(See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] .)2 Steering wheel
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)3 Steering shift switch component
(See Steering Shift Switch Component Removal Note .) - Install in the reverse order of removal.
