Steering Shift Switch Component Removal Note

Disconnect the steering shift switch wiring harness connector.

Fig 1: Disconnecting Steering Shift Switch Wiring Harness Connector
Courtesy of MAZDA

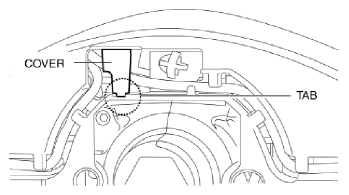

Detach the tabs of the cover in the area circled by a dashed line and open the cover.

Fig 2: Detaching Tabs Of Cover In Area
Courtesy of MAZDA
Using a precision flathead screwdriver, release the tab.

Fig 3: Releasing Tab
Courtesy of MAZDA
Remove the steering shift switch component from the gap in the opening of the cover.

Fig 4: Removing Steering Shift Switch Component From Cover
Courtesy of MAZDA
Install in the reverse order of removal.
