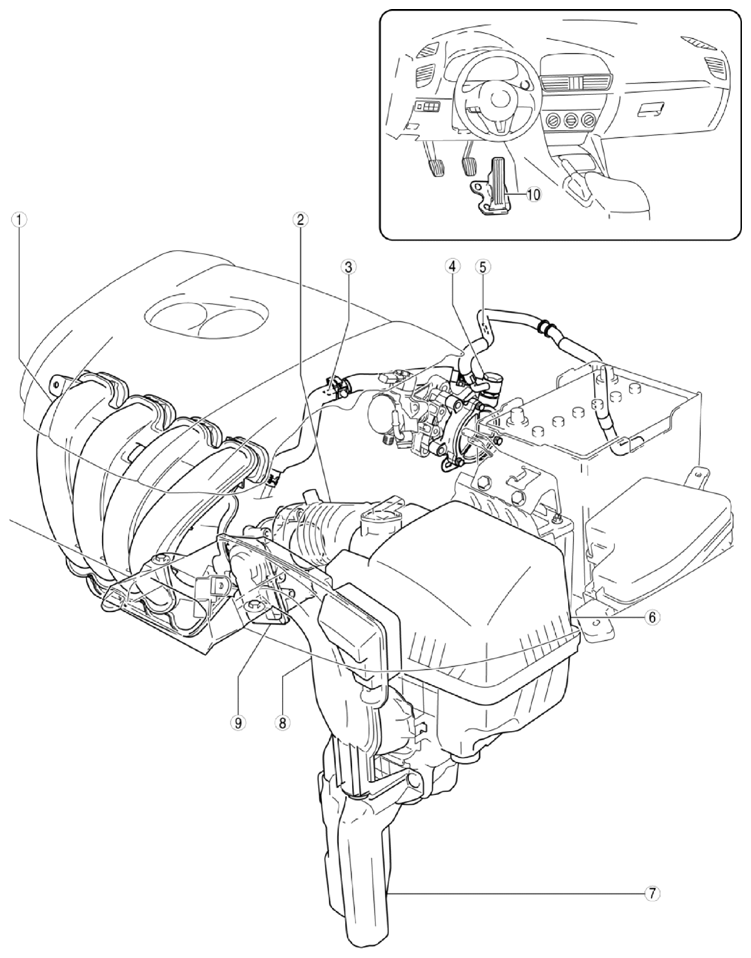

| 1 |
Intake manifold
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
(See INTAKE MANIFOLD VACUUM INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 2 |
Air hose
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 3 |
Check valve (between intake manifold and vacuum pump)
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
(See CHECK VALVE INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 4 |
Vacuum pump
(See VACUUM PUMP REMOVAL/INSTALLATION
.)
(See VACUUM PUMP INSPECTION
.) |
| 5 |
Check valve (between vacuum pump and power brake unit)
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
(See CHECK VALVE INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 6 |
Air cleaner
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
(See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
(See AIR CLEANER ELEMENT INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 7 |
Resonance chamber
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 8 |
Fresh-air duct
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 9 |
Throttle body
(See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
(See THROTTLE BODY INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
| 10 |
Accelerator pedal
(See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .) |
