Accelerator Pedal Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove in the order indicated in the table.

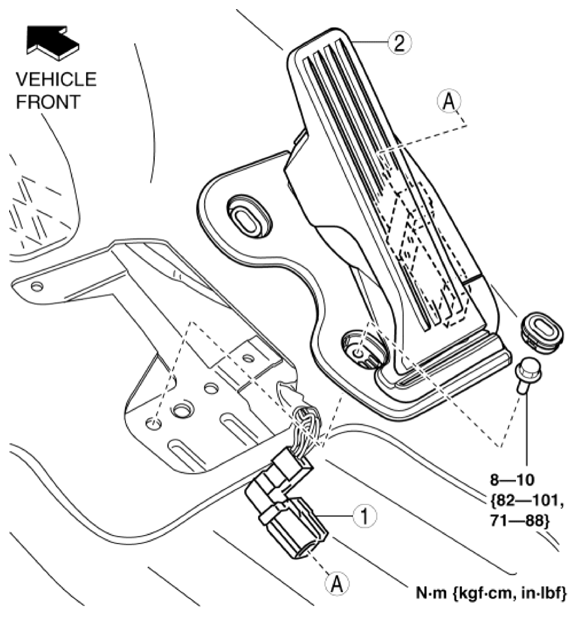

Fig 1: Identifying APP Sensor Connector Bolt With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 APP sensor connector

2 Accelerator pedal
Install in the reverse order of removal.

1	APP sensor connector
2	Accelerator pedal
