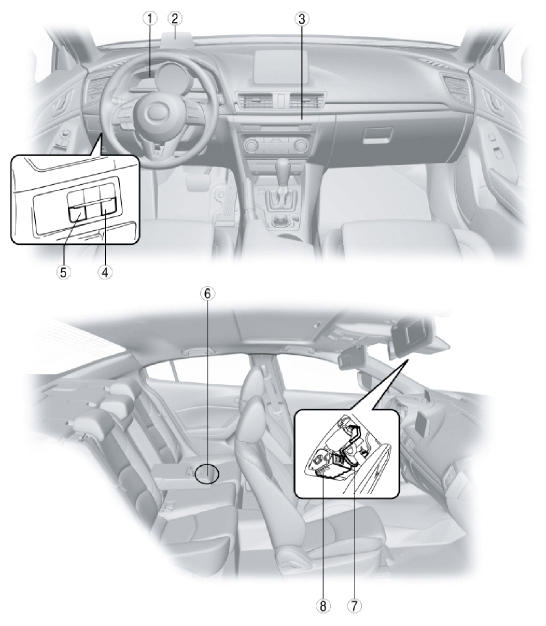

| 1 |
Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .)
(See INSTRUMENT CLUSTER INSPECTION .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .)
(See INSTRUMENT CLUSTER OPERATION RECORD .) |
| 2 |
Active driving display (with center display)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .)
(See ACTIVE DRIVING DISPLAY INSPECTION .) |
| 3 |
Indicator unit
(See INDICATOR UNIT REMOVAL/INSTALLATION .)
(See INDICATOR UNIT INSPECTION .) |
| 4 |
LDWS switch (with lane departure warning system (LDWS))
(See LDWS SWITCH REMOVAL/INSTALLATION .)
(See LDWS SWITCH INSPECTION .) |
| 5 |
BSM OFF switch (with blind spot monitoring (BSM) system)
(See BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION .)
(See BLIND SPOT MONITORING (BSM) OFF SWITCH INSPECTION .) |
| 6 |
Fuel gauge sender unit
(See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION .)
(See FUEL GAUGE SENDER UNIT INSPECTION .) |
| 7 |
Forward sensing camera (FSC) short-cord (with lane departure warning system (LDWS))
(See FORWARD SENSING CAMERA (FSC) SHORT-CORD REMOVAL/INSTALLATION .)
(See FORWARD SENSING CAMERA (FSC) SHORT-CORD INSPECTION .) |
| 8 |
Forward sensing camera (FSC) (with lane departure warning system (LDWS))
(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
(See FORWARD SENSING CAMERA (FSC) CLIP REMOVAL/INSTALLATION .)
(See FORWARD SENSING CAMERA (FSC) COVER REMOVAL/INSTALLATION .)
(See FORWARD SENSING CAMERA (FSC) AIMING .)
(See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .)
(See FORWARD SENSING CAMERA (FSC) PERSONALIZATION FEATURES SETTING PROCEDURE .) |
