Rear Console Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

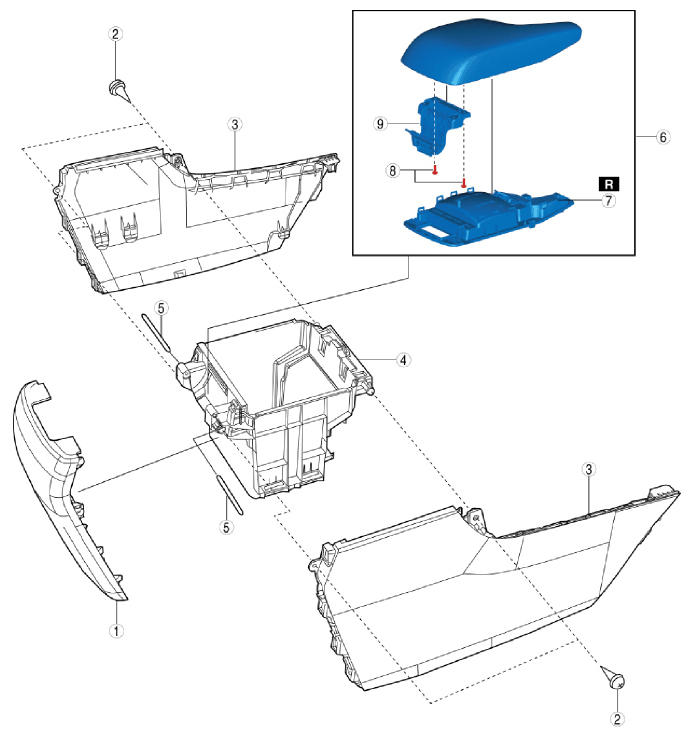

    Fig 1: Exploded View Of Rear Console
    G10963370Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Console panel
    2 Screw
    3 Side panel
    (See Side Panel Removal Note .)
    4 Rear console box
    5 Pin
    (See console lid removal/installation .)
    6 Rear console lid
    (See console lid removal/installation .)
    7 Console lid inner
    (See console lid removal/installation .)
    8 Screw
    9 Console lid hinge
  2. Assemble in the reverse order of disassembly.
