Side Panel Removal Note

  1. Move the side panel in the order of arrows (1) and (2) shown in the figure and remove the guide from the rear console box.

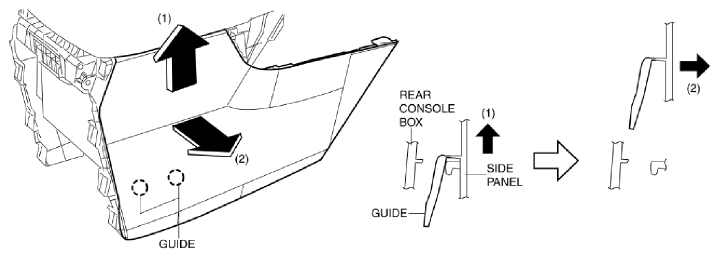

    Fig 1: Moving Side Panel
    G10963371Courtesy of MAZDA MOTORS CORP.
