Tweeter Inspection

Connect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the side speaker grille. (Refer to SPEAKER GRILLE REMOVAL/INSTALLATION .)
Remove the tweeter. (Refer to TWEETER REMOVAL/INSTALLATION .)
Inspect the resistance between tweeter terminals A and B.
Tweeter resistance
- 3.4-4.6 ohms

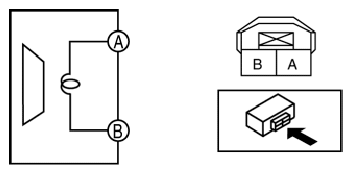

  Fig 1: Inspecting Resistance Between Tweeter Terminals A And B
  Courtesy of ABLE BODY CORP.
- If not within the specification, replace the tweeter. (Refer to TWEETER REMOVAL/INSTALLATION .)
