Tweeter Removal/Installation

NOTE:

If the procedure is performed while holding the tweeter cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.

Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the side speaker grille. (Refer to SPEAKER GRILLE REMOVAL/INSTALLATION .)
Remove the screws.

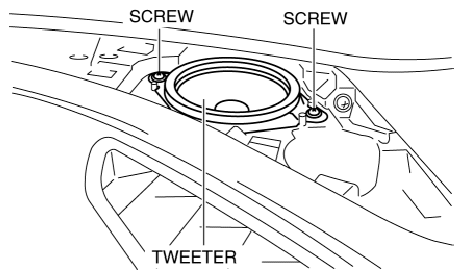

Fig 1: Identifying Tweeter With Screws
Courtesy of ABLE BODY CORP.
Remove the tweeter.
Disconnect the connector.

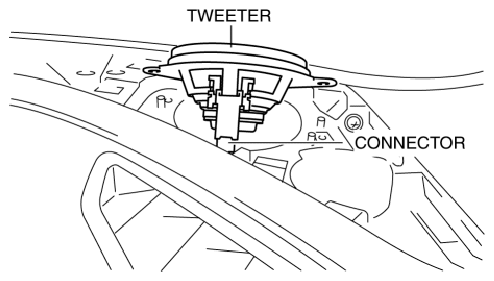

Fig 2: Identifying Tweeter And Connector
Courtesy of ABLE BODY CORP.
Install in the reverse order of removal.
