Front Combination Light Disassembly/Assembly: Notes

  1. Disassemble in the order shown in the figure.

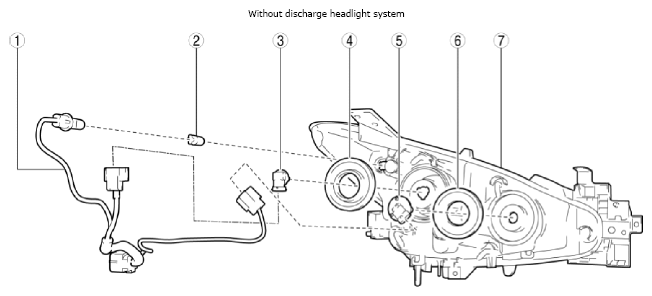

    Fig 1: Front Combination Light Related Components (Without Discharge Headlight System)
    G10962739Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short-cord
    (See Short Cord Removal Note .)
    2 Front side marker light/parking light bulb
    (See FRONT SIDE MARKER LIGHT/PARKING LIGHT BULB REMOVAL/INSTALLATION .)
    3 Headlight LO bulb
    (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
    4 Cover No. 1
    (See Cover Installation Note .)
    5 Headlight HI bulb
    (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
    6 Cover No. 2
    (See Cover Installation Note .)
    7 Front combination light

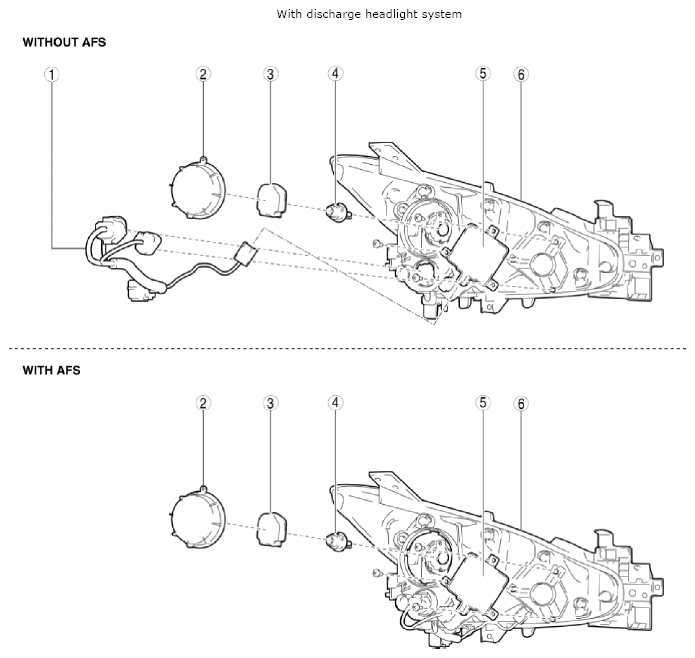

    Fig 2: Front Combination Light Related Components (With Discharge Headlight System)
    G10962740Courtesy of MAZDA MOTORS CORP.
    COMPONENT DESCRIPTION

    1 Short-cord
    (See Short Cord Removal Note .)
    2 Cover
    (See Cover Installation Note .)
    3 Igniter
    (See IGNITER REMOVAL/INSTALLATION .)
    4 Headlight HI/LO bulb
    (See HEADLIGHT BULB REMOVAL/INSTALLATION .)
    5 Discharge headlight control module
    (See DISCHARGE HEADLIGHT CONTROL MODULE REMOVAL/INSTALLATION .)
    6 Front combination light
  2. Assemble in the reverse order of disassembly.
